Generating object files

The previous chapters focused solely on assembly code generation. This chapter extends that by adding ELF object file support and verifying the generated object files using the objdump utility.

With LLVM support, the Cpu0 backend can generate both big-endian and little-endian object files with minimal additional code.

Additionally, this chapter introduces the Target Registration mechanism and its structure.

Similar to Fig. 23 from the previous chapter Backend structure, but this chapter focuses on emitting binary object instructions as shown in Fig. 31.

Fig. 31 When “llc -filetype=obj”, Cpu0AsmPrinter extract MCInst from MachineInstr for obj encoding

Translate into obj file

Currently, the backend only supports translating LLVM IR code into assembly code. If you attempt to compile an LLVM IR input file into an object file using the Chapter4_2/ compiler code, you will encounter the following error message:

bin$ pwd
$HOME/llvm/test/build/bin/
bin$ llc -march=cpu0 -relocation-model=pic -filetype=obj ch4_1_math_math.bc -o
ch4_1_math.cpu0.o
~/llvm/test/build/bin/llc: target does not
support generation of this file type!

The Chapter5_1/ implementation supports object file generation. It can produce object files for both big-endian and little-endian architectures using the following commands:

• Big-endian: llc -march=cpu0

• Little-endian: llc -march=cpu0el

Running these commands will generate the corresponding object files as shown below:

input$ cat ch4_1_math.cpu0.s
...
  .set  nomacro
# BB#0:                                 # %entry
  addiu $sp, $sp, -40
$tmp1:
  .cfi_def_cfa_offset 40
  addiu $2, $zero, 5
  st  $2, 36($fp)
  addiu $2, $zero, 2
  st  $2, 32($fp)
  addiu $2, $zero, 0
  st  $2, 28($fp)
...

bin$ pwd
$HOME/llvm/test/build/bin/
bin$ llc -march=cpu0 -relocation-model=pic -filetype=obj ch4_1_math.bc -o
ch4_1_math.cpu0.o
input$ objdump -s ch4_1_math.cpu0.o

ch4_1_math.cpu0.o:     file format elf32-big

Contents of section .text:
 0000 09ddffc8 09200005 022d0034 09200002  ..... ...-.4. ..
 0010 022d0030 0920fffb 022d002c 012d0030  .-.0. ...-.,.-.0
 0020 013d0034 11232000 022d0028 012d0030  .=.4.# ..-.(.-.0
 0030 013d0034 12232000 022d0024 012d0030  .=.4.# ..-.$.-.0
 0040 013d0034 17232000 022d0020 012d0034  .=.4.# ..-. .-.4
 0050 1e220002 022d001c 012d002c 1e220001  ."...-...-.,."..
 0060 022d000c 012d0034 1d220002 022d0018  .-...-.4."...-..
 0070 012d002c 1f22001e 022d0008 09200001  .-.,."...-... ..
 0080 013d0034 21323000 023d0014 013d0030  .=.4!20..=...=.0
 0090 21223000 022d0004 09200080 013d0034  !"0..-... ...=.4
 00a0 22223000 022d0010 012d0034 013d0030  ""0..-...-.4.=.0
 00b0 20232000 022d0000 09dd0038 3ce00000   # ..-.....8<...

input$ ~/llvm/test/
build/bin/llc -march=cpu0el -relocation-model=pic -filetype=obj
ch4_1_math.bc -o ch4_1_math.cpu0el.o
input$ objdump -s ch4_1_math.cpu0el.o

ch4_1_math.cpu0el.o:     file format elf32-little

Contents of section .text:
 0000 c8ffdd09 05002009 34002d02 02002009  ...... .4.-... .
 0010 30002d02 fbff2009 2c002d02 30002d01  0.-... .,.-.0.-.
 0020 34003d01 00202311 28002d02 30002d01  4.=.. #.(.-.0.-.
 0030 34003d01 00202312 24002d02 30002d01  4.=.. #.$.-.0.-.
 0040 34003d01 00202317 20002d02 34002d01  4.=.. #. .-.4.-.
 0050 0200221e 1c002d02 2c002d01 0100221e  .."...-.,.-...".
 0060 0c002d02 34002d01 0200221d 18002d02  ..-.4.-..."...-.
 0070 2c002d01 1e00221f 08002d02 01002009  ,.-..."...-... .
 0080 34003d01 00303221 14003d02 30003d01  4.=..02!..=.0.=.
 0090 00302221 04002d02 80002009 34003d01  .0"!..-... .4.=.
 00a0 00302222 10002d02 34002d01 30003d01  .0""..-.4.-.0.=.
 00b0 00202320 00002d02 3800dd09 0000e03c  . # ..-.8......<

The first instruction is “addiu $sp, -56”, and its corresponding obj is 0x09ddffc8. The opcode of addiu is 0x09 (8 bits); the $sp register number is 13 (0xd) (4 bits); and the immediate value is -56 (0xffc8) (16 bits), so it is correct.

The third instruction “st $2, 52($fp)”, and its corresponding obj is 0x022b0034. The st opcode is 0x02, $2 is 0x2, $fp is 0xb, and the immediate value is 52 (0x0034).

Thanks to the Cpu0 instruction format, where the opcode, register operand, and offset (immediate value) sizes are multiples of 4 bits, the obj format is easy to verify manually.

For big-endian format: (B0, B1, B2, B3) = (09, dd, ff, c8), objdump from B0 to B3 is 0x09ddffc8.

For little-endian format: (B3, B2, B1, B0) = (09, dd, ff, c8), objdump from B0 to B3 is 0xc8ffdd09.

ELF obj related code

To support ELF object file generation, the following code was modified and added to Chapter5_1.

lbdex/chapters/Chapter5_1/InstPrinter/Cpu0InstPrinter.cpp

#include "MCTargetDesc/Cpu0MCExpr.h"

lbdex/chapters/Chapter5_1/MCTargetDesc/CMakeLists.txt

  Cpu0AsmBackend.cpp
  Cpu0MCCodeEmitter.cpp
  Cpu0MCExpr.cpp
  Cpu0ELFObjectWriter.cpp
  Cpu0TargetStreamer.cpp

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0AsmBackend.h

//===-- Cpu0AsmBackend.h - Cpu0 Asm Backend  ------------------------------===//
//
//                     The LLVM Compiler Infrastructure
//
// This file is distributed under the University of Illinois Open Source
// License. See LICENSE.TXT for details.
//
//===----------------------------------------------------------------------===//
//
// This file defines the Cpu0AsmBackend class.
//
//===----------------------------------------------------------------------===//
//

#ifndef LLVM_LIB_TARGET_CPU0_MCTARGETDESC_CPU0ASMBACKEND_H
#define LLVM_LIB_TARGET_CPU0_MCTARGETDESC_CPU0ASMBACKEND_H

#include "Cpu0Config.h"

#include "MCTargetDesc/Cpu0FixupKinds.h"
#include "llvm/ADT/Triple.h"
#include "llvm/MC/MCAsmBackend.h"

namespace llvm {

class MCAssembler;
struct MCFixupKindInfo;
class Target;
class MCObjectWriter;

class Cpu0AsmBackend : public MCAsmBackend {
  Triple TheTriple;

public:
  Cpu0AsmBackend(const Target &T, const Triple &TT)
      : MCAsmBackend(TT.isLittleEndian() ? support::little : support::big),
        TheTriple(TT) {}

  std::unique_ptr<MCObjectTargetWriter>
  createObjectTargetWriter() const override;

  void applyFixup(const MCAssembler &Asm, const MCFixup &Fixup,
                  const MCValue &Target, MutableArrayRef<char> Data,
                  uint64_t Value, bool IsResolved,
                  const MCSubtargetInfo *STI) const override;

  const MCFixupKindInfo &getFixupKindInfo(MCFixupKind Kind) const override;

  unsigned getNumFixupKinds() const override {
    return Cpu0::NumTargetFixupKinds;
  }

  /// @name Target Relaxation Interfaces
  /// @{

  /// MayNeedRelaxation - Check whether the given instruction may need
  /// relaxation.
  ///
  /// \param Inst - The instruction to test.
  bool mayNeedRelaxation(const MCInst &Inst,
                         const MCSubtargetInfo &STI) const override {
    return false;
  }

  /// fixupNeedsRelaxation - Target specific predicate for whether a given
  /// fixup requires the associated instruction to be relaxed.
   bool fixupNeedsRelaxation(const MCFixup &Fixup, uint64_t Value,
                             const MCRelaxableFragment *DF,
                             const MCAsmLayout &Layout) const override {
    // FIXME.
    llvm_unreachable("RelaxInstruction() unimplemented");
    return false;
  }

  /// @}

  bool writeNopData(raw_ostream &OS, uint64_t Count) const override;
}; // class Cpu0AsmBackend

} // namespace

#endif

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0AsmBackend.cpp

//===-- Cpu0AsmBackend.cpp - Cpu0 Asm Backend  ----------------------------===//
//
//                     The LLVM Compiler Infrastructure
//
// This file is distributed under the University of Illinois Open Source
// License. See LICENSE.TXT for details.
//
//===----------------------------------------------------------------------===//
//
// This file implements the Cpu0AsmBackend class.
//
//===----------------------------------------------------------------------===//
//

#include "MCTargetDesc/Cpu0FixupKinds.h"
#include "MCTargetDesc/Cpu0AsmBackend.h"

#include "MCTargetDesc/Cpu0MCTargetDesc.h"
#include "llvm/MC/MCAsmBackend.h"
#include "llvm/MC/MCAssembler.h"
#include "llvm/MC/MCDirectives.h"
#include "llvm/MC/MCELFObjectWriter.h"
#include "llvm/MC/MCFixupKindInfo.h"
#include "llvm/MC/MCObjectWriter.h"
#include "llvm/MC/MCSubtargetInfo.h"
#include "llvm/Support/CommandLine.h"
#include "llvm/Support/ErrorHandling.h"
#include "llvm/Support/raw_ostream.h"

using namespace llvm;

static cl::opt<bool> HasLLD(
  "has-lld",
  cl::init(false),
  cl::desc("CPU0: Has lld linker for Cpu0."),
  cl::Hidden);

//@adjustFixupValue {
// Prepare value for the target space for it
static unsigned adjustFixupValue(const MCFixup &Fixup, uint64_t Value,
                                 MCContext &Ctx) {

  unsigned Kind = Fixup.getKind();

  // Add/subtract and shift
  switch (Kind) {
  default:
    return 0;
  case FK_GPRel_4:
  case FK_Data_4:
  case Cpu0::fixup_Cpu0_LO16:
    break;
  case Cpu0::fixup_Cpu0_HI16:
  case Cpu0::fixup_Cpu0_GOT:
    // Get the higher 16-bits. Also add 1 if bit 15 is 1.
    Value = (Value >> 16) & 0xffff;
    break;
  }

  return Value;
}
//@adjustFixupValue }

std::unique_ptr<MCObjectTargetWriter>
Cpu0AsmBackend::createObjectTargetWriter() const {
  return createCpu0ELFObjectWriter(TheTriple);
}

/// ApplyFixup - Apply the \p Value for given \p Fixup into the provided
/// data fragment, at the offset specified by the fixup and following the
/// fixup kind as appropriate.
void Cpu0AsmBackend::applyFixup(const MCAssembler &Asm, const MCFixup &Fixup,
                                const MCValue &Target,
                                MutableArrayRef<char> Data, uint64_t Value,
                                bool IsResolved,
                                const MCSubtargetInfo *STI) const {
  MCFixupKind Kind = Fixup.getKind();
  MCContext &Ctx = Asm.getContext();
  Value = adjustFixupValue(Fixup, Value, Ctx);

  if (!Value)
    return; // Doesn't change encoding.

  // Where do we start in the object
  unsigned Offset = Fixup.getOffset();
  // Number of bytes we need to fixup
  unsigned NumBytes = (getFixupKindInfo(Kind).TargetSize + 7) / 8;
  // Used to point to big endian bytes
  unsigned FullSize;

  switch ((unsigned)Kind) {
  default:
    FullSize = 4;
    break;
  }

  // Grab current value, if any, from bits.
  uint64_t CurVal = 0;

  for (unsigned i = 0; i != NumBytes; ++i) {
    unsigned Idx = TheTriple.isLittleEndian() ? i : (FullSize - 1 - i);
    CurVal |= (uint64_t)((uint8_t)Data[Offset + Idx]) << (i*8);
  }

  uint64_t Mask = ((uint64_t)(-1) >>
                    (64 - getFixupKindInfo(Kind).TargetSize));
  CurVal |= Value & Mask;

  // Write out the fixed up bytes back to the code/data bits.
  for (unsigned i = 0; i != NumBytes; ++i) {
    unsigned Idx = TheTriple.isLittleEndian() ? i : (FullSize - 1 - i);
    Data[Offset + Idx] = (uint8_t)((CurVal >> (i*8)) & 0xff);
  }
}

//@getFixupKindInfo {
const MCFixupKindInfo &Cpu0AsmBackend::
getFixupKindInfo(MCFixupKind Kind) const {
  unsigned JSUBReloRec = 0;
  if (HasLLD) {
    JSUBReloRec = MCFixupKindInfo::FKF_IsPCRel;
  }
  else {
    JSUBReloRec = MCFixupKindInfo::FKF_IsPCRel | MCFixupKindInfo::FKF_Constant;
  }
  const static MCFixupKindInfo Infos[Cpu0::NumTargetFixupKinds] = {
    // This table *must* be in same the order of fixup_* kinds in
    // Cpu0FixupKinds.h.
    //
    // name                        offset  bits  flags
    { "fixup_Cpu0_32",             0,     32,   0 },
    { "fixup_Cpu0_HI16",           0,     16,   0 },
    { "fixup_Cpu0_LO16",           0,     16,   0 },
    { "fixup_Cpu0_GPREL16",        0,     16,   0 },
    { "fixup_Cpu0_GOT",            0,     16,   0 },
    { "fixup_Cpu0_GOT_HI16",       0,     16,   0 },
    { "fixup_Cpu0_GOT_LO16",       0,     16,   0 }
  };

  if (Kind < FirstTargetFixupKind)
    return MCAsmBackend::getFixupKindInfo(Kind);

  assert(unsigned(Kind - FirstTargetFixupKind) < getNumFixupKinds() &&
         "Invalid kind!");
  return Infos[Kind - FirstTargetFixupKind];
}
//@getFixupKindInfo }

/// WriteNopData - Write an (optimal) nop sequence of Count bytes
/// to the given output. If the target cannot generate such a sequence,
/// it should return an error.
///
/// \return - True on success.
bool Cpu0AsmBackend::writeNopData(raw_ostream &OS, uint64_t Count) const {
  return true;
}

// MCAsmBackend
MCAsmBackend *llvm::createCpu0AsmBackend(const Target &T,
                                         const MCSubtargetInfo &STI,
                                         const MCRegisterInfo &MRI,
                                         const MCTargetOptions &Options) {
  return new Cpu0AsmBackend(T, STI.getTargetTriple());
}

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0BaseInfo.h

#include "Cpu0FixupKinds.h"

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0ELFObjectWriter.cpp

//===-- Cpu0ELFObjectWriter.cpp - Cpu0 ELF Writer -------------------------===//
//
//                     The LLVM Compiler Infrastructure
//
// This file is distributed under the University of Illinois Open Source
// License. See LICENSE.TXT for details.
//
//===----------------------------------------------------------------------===//

#include "Cpu0Config.h"

#include "MCTargetDesc/Cpu0BaseInfo.h"
#include "MCTargetDesc/Cpu0FixupKinds.h"
#include "MCTargetDesc/Cpu0MCTargetDesc.h"
#include "llvm/MC/MCAssembler.h"
#include "llvm/MC/MCELFObjectWriter.h"
#include "llvm/MC/MCExpr.h"
#include "llvm/MC/MCSection.h"
#include "llvm/MC/MCValue.h"
#include "llvm/Support/ErrorHandling.h"
#include <list>

using namespace llvm;

namespace {
  class Cpu0ELFObjectWriter : public MCELFObjectTargetWriter {
  public:
    Cpu0ELFObjectWriter(uint8_t OSABI, bool HasRelocationAddend, bool Is64);

	~Cpu0ELFObjectWriter() = default;

    unsigned getRelocType(MCContext &Ctx, const MCValue &Target,
                        const MCFixup &Fixup, bool IsPCRel) const override;
    bool needsRelocateWithSymbol(const MCSymbol &Sym,
                                 unsigned Type) const override;
  };
}

Cpu0ELFObjectWriter::Cpu0ELFObjectWriter(uint8_t OSABI,
                                         bool HasRelocationAddend, bool Is64)
    : MCELFObjectTargetWriter(/*Is64Bit_=false*/ Is64, OSABI, ELF::EM_CPU0,
          /*HasRelocationAddend_ = false*/ HasRelocationAddend) {}

//@GetRelocType {
unsigned Cpu0ELFObjectWriter::getRelocType(MCContext &Ctx,
                                           const MCValue &Target,
                                           const MCFixup &Fixup,
                                           bool IsPCRel) const {
  // determine the type of the relocation
  unsigned Type = (unsigned)ELF::R_CPU0_NONE;
  unsigned Kind = (unsigned)Fixup.getKind();

  switch (Kind) {
  default:
    llvm_unreachable("invalid fixup kind!");
  case FK_Data_4:
    Type = ELF::R_CPU0_32;
    break;
  case Cpu0::fixup_Cpu0_32:
    Type = ELF::R_CPU0_32;
    break;
  case Cpu0::fixup_Cpu0_GPREL16:
    Type = ELF::R_CPU0_GPREL16;
    break;
  case Cpu0::fixup_Cpu0_GOT:
    Type = ELF::R_CPU0_GOT16;
    break;
  case Cpu0::fixup_Cpu0_HI16:
    Type = ELF::R_CPU0_HI16;
    break;
  case Cpu0::fixup_Cpu0_LO16:
    Type = ELF::R_CPU0_LO16;
    break;
  case Cpu0::fixup_Cpu0_GOT_HI16:
    Type = ELF::R_CPU0_GOT_HI16;
    break;
  case Cpu0::fixup_Cpu0_GOT_LO16:
    Type = ELF::R_CPU0_GOT_LO16;
    break;
  }

  return Type;
}
//@GetRelocType }

bool
Cpu0ELFObjectWriter::needsRelocateWithSymbol(const MCSymbol &Sym,
                                             unsigned Type) const {
  // FIXME: This is extremelly conservative. This really needs to use a
  // whitelist with a clear explanation for why each realocation needs to
  // point to the symbol, not to the section.
  switch (Type) {
  default:
    return true;

  case ELF::R_CPU0_GOT16:
  // For Cpu0 pic mode, I think it's OK to return true but I didn't confirm.
  //  llvm_unreachable("Should have been handled already");
    return true;

  // These relocations might be paired with another relocation. The pairing is
  // done by the static linker by matching the symbol. Since we only see one
  // relocation at a time, we have to force them to relocate with a symbol to
  // avoid ending up with a pair where one points to a section and another
  // points to a symbol.
  case ELF::R_CPU0_HI16:
  case ELF::R_CPU0_LO16:
  // R_CPU0_32 should be a relocation record, I don't know why Mips set it to
  // false.
  case ELF::R_CPU0_32:
    return true;

  case ELF::R_CPU0_GPREL16:
    return false;
  }
}

std::unique_ptr<MCObjectTargetWriter>
llvm::createCpu0ELFObjectWriter(const Triple &TT) {
  uint8_t OSABI = MCELFObjectTargetWriter::getOSABI(TT.getOS());
  bool IsN64 = false;
  bool HasRelocationAddend = TT.isArch64Bit();
  return std::make_unique<Cpu0ELFObjectWriter>(OSABI, HasRelocationAddend,
                                               IsN64);
}

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0FixupKinds.h

//===-- Cpu0FixupKinds.h - Cpu0 Specific Fixup Entries ----------*- C++ -*-===//
//
//                     The LLVM Compiler Infrastructure
//
// This file is distributed under the University of Illinois Open Source
// License. See LICENSE.TXT for details.
//
//===----------------------------------------------------------------------===//

#ifndef LLVM_LIB_TARGET_CPU0_MCTARGETDESC_CPU0FIXUPKINDS_H
#define LLVM_LIB_TARGET_CPU0_MCTARGETDESC_CPU0FIXUPKINDS_H

#include "Cpu0Config.h"

#include "llvm/MC/MCFixup.h"

namespace llvm {
namespace Cpu0 {
  // Although most of the current fixup types reflect a unique relocation
  // one can have multiple fixup types for a given relocation and thus need
  // to be uniquely named.
  //
  // This table *must* be in the save order of
  // MCFixupKindInfo Infos[Cpu0::NumTargetFixupKinds]
  // in Cpu0AsmBackend.cpp.
  //@Fixups {
  enum Fixups {
    //@ Pure upper 32 bit fixup resulting in - R_CPU0_32.
    fixup_Cpu0_32 = FirstTargetFixupKind,

    // Pure upper 16 bit fixup resulting in - R_CPU0_HI16.
    fixup_Cpu0_HI16,

    // Pure lower 16 bit fixup resulting in - R_CPU0_LO16.
    fixup_Cpu0_LO16,

    // 16 bit fixup for GP offest resulting in - R_CPU0_GPREL16.
    fixup_Cpu0_GPREL16,

    // GOT (Global Offset Table)
    // Symbol fixup resulting in - R_CPU0_GOT16.
    fixup_Cpu0_GOT,



    // resulting in - R_CPU0_GOT_HI16
    fixup_Cpu0_GOT_HI16,

    // resulting in - R_CPU0_GOT_LO16
    fixup_Cpu0_GOT_LO16,

    // Marker
    LastTargetFixupKind,
    NumTargetFixupKinds = LastTargetFixupKind - FirstTargetFixupKind
  };
  //@Fixups }
} // namespace Cpu0
} // namespace llvm

#endif // LLVM_CPU0_CPU0FIXUPKINDS_H

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0MCCodeEmitter.h

//===-- Cpu0MCCodeEmitter.h - Convert Cpu0 Code to Machine Code -----------===//
//
//                     The LLVM Compiler Infrastructure
//
// This file is distributed under the University of Illinois Open Source
// License. See LICENSE.TXT for details.
//
//===----------------------------------------------------------------------===//
//
// This file defines the Cpu0MCCodeEmitter class.
//
//===----------------------------------------------------------------------===//
//

#ifndef LLVM_LIB_TARGET_CPU0_MCTARGETDESC_CPU0MCCODEEMITTER_H
#define LLVM_LIB_TARGET_CPU0_MCTARGETDESC_CPU0MCCODEEMITTER_H

#include "Cpu0Config.h"

#include "llvm/MC/MCCodeEmitter.h"
#include "llvm/Support/DataTypes.h"

using namespace llvm;

namespace llvm {
class MCContext;
class MCExpr;
class MCInst;
class MCInstrInfo;
class MCFixup;
class MCOperand;
class MCSubtargetInfo;
class raw_ostream;

class Cpu0MCCodeEmitter : public MCCodeEmitter {
  Cpu0MCCodeEmitter(const Cpu0MCCodeEmitter &) = delete;
  void operator=(const Cpu0MCCodeEmitter &) = delete;
  const MCInstrInfo &MCII;
  MCContext &Ctx;
  bool IsLittleEndian;

public:
  Cpu0MCCodeEmitter(const MCInstrInfo &mcii, MCContext &Ctx_, bool IsLittle)
      : MCII(mcii), Ctx(Ctx_), IsLittleEndian(IsLittle) {}

  ~Cpu0MCCodeEmitter() override {}

  void EmitByte(unsigned char C, raw_ostream &OS) const;

  void EmitInstruction(uint64_t Val, unsigned Size, raw_ostream &OS) const;

  void encodeInstruction(const MCInst &MI, raw_ostream &OS,
                         SmallVectorImpl<MCFixup> &Fixups,
                         const MCSubtargetInfo &STI) const override;

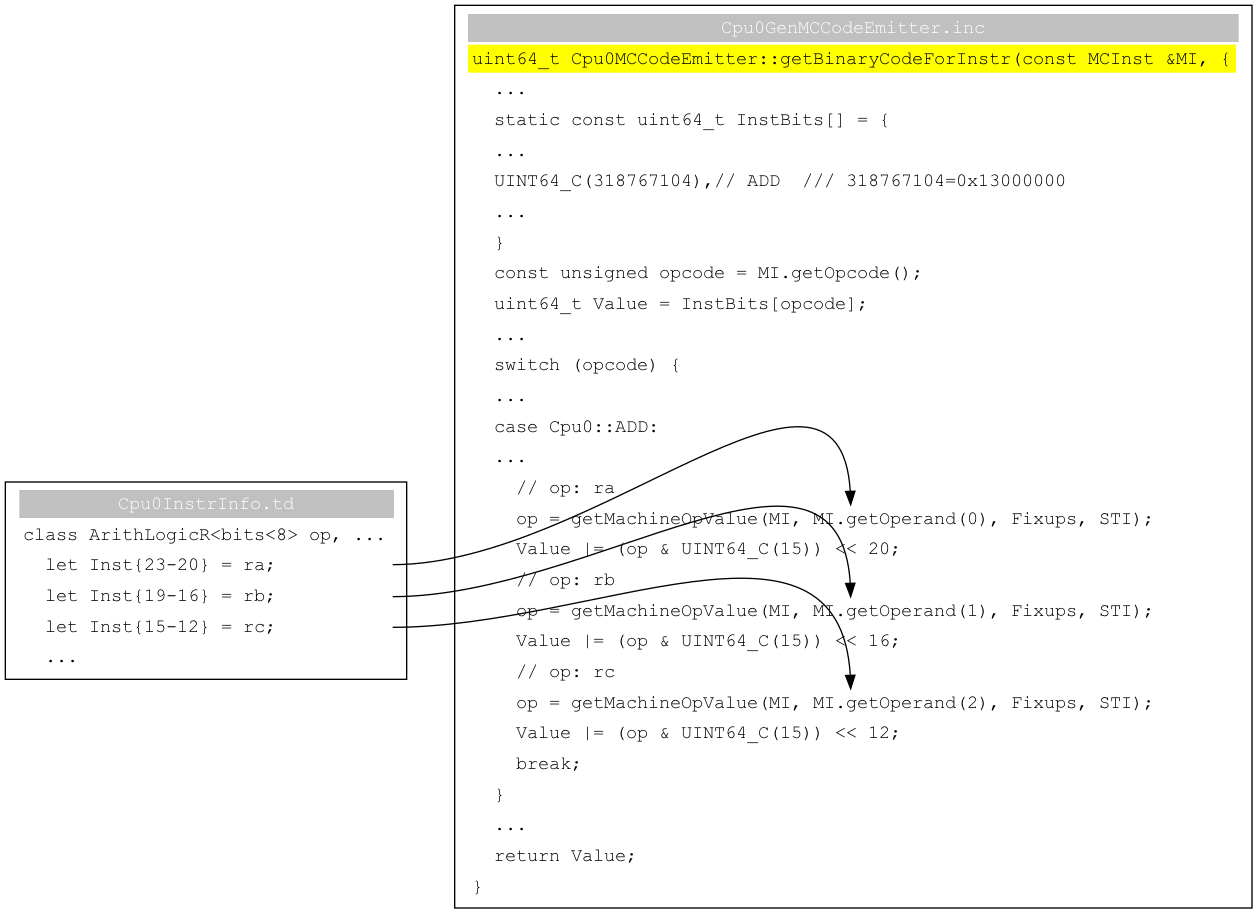

  // getBinaryCodeForInstr - TableGen'erated function for getting the
  // binary encoding for an instruction.
  uint64_t getBinaryCodeForInstr(const MCInst &MI,
                                 SmallVectorImpl<MCFixup> &Fixups,
                                 const MCSubtargetInfo &STI) const;

  // getMachineOpValue - Return binary encoding of operand. If the machin
  // operand requires relocation, record the relocation and return zero.
  unsigned getMachineOpValue(const MCInst &MI, const MCOperand &MO,
                             SmallVectorImpl<MCFixup> &Fixups,
                             const MCSubtargetInfo &STI) const;

  unsigned getMemEncoding(const MCInst &MI, unsigned OpNo,
                          SmallVectorImpl<MCFixup> &Fixups,
                          const MCSubtargetInfo &STI) const;

  unsigned getExprOpValue(const MCExpr *Expr, SmallVectorImpl<MCFixup> &Fixups,
                          const MCSubtargetInfo &STI) const;
}; // class Cpu0MCCodeEmitter
} // namespace llvm.

#endif

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0MCCodeEmitter.cpp

//===-- Cpu0MCCodeEmitter.cpp - Convert Cpu0 Code to Machine Code ---------===//
//
//                     The LLVM Compiler Infrastructure
//
// This file is distributed under the University of Illinois Open Source
// License. See LICENSE.TXT for details.
//
//===----------------------------------------------------------------------===//
//
// This file implements the Cpu0MCCodeEmitter class.
//
//===----------------------------------------------------------------------===//
//

#include "Cpu0MCCodeEmitter.h"

#include "MCTargetDesc/Cpu0BaseInfo.h"
#include "MCTargetDesc/Cpu0FixupKinds.h"
#include "MCTargetDesc/Cpu0MCExpr.h"
#include "MCTargetDesc/Cpu0MCTargetDesc.h"
#include "llvm/ADT/APFloat.h"
#include "llvm/MC/MCCodeEmitter.h"
#include "llvm/MC/MCContext.h"
#include "llvm/MC/MCExpr.h"
#include "llvm/MC/MCInst.h"
#include "llvm/MC/MCInstrInfo.h"
#include "llvm/MC/MCRegisterInfo.h"
#include "llvm/MC/MCSubtargetInfo.h"
#include "llvm/Support/raw_ostream.h"

#define DEBUG_TYPE "mccodeemitter"

#define GET_INSTRMAP_INFO
#include "Cpu0GenInstrInfo.inc"
#undef GET_INSTRMAP_INFO

using namespace llvm;

MCCodeEmitter *llvm::createCpu0MCCodeEmitterEB(const MCInstrInfo &MCII,
                                               const MCRegisterInfo &MRI,
                                               MCContext &Ctx) {
  return new Cpu0MCCodeEmitter(MCII, Ctx, false);
}

MCCodeEmitter *llvm::createCpu0MCCodeEmitterEL(const MCInstrInfo &MCII,
                                               const MCRegisterInfo &MRI,
                                               MCContext &Ctx) {
  return new Cpu0MCCodeEmitter(MCII, Ctx, true);
}

void Cpu0MCCodeEmitter::EmitByte(unsigned char C, raw_ostream &OS) const {
  OS << (char)C;
}

void Cpu0MCCodeEmitter::EmitInstruction(uint64_t Val, unsigned Size, raw_ostream &OS) const {
  // Output the instruction encoding in little endian byte order.
  for (unsigned i = 0; i < Size; ++i) {
    unsigned Shift = IsLittleEndian ? i * 8 : (Size - 1 - i) * 8;
    EmitByte((Val >> Shift) & 0xff, OS);
  }
}

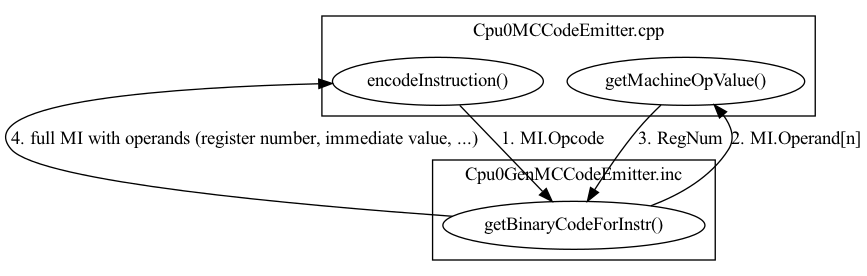

/// encodeInstruction - Emit the instruction.
/// Size the instruction (currently only 4 bytes)
void Cpu0MCCodeEmitter::
encodeInstruction(const MCInst &MI, raw_ostream &OS,
                  SmallVectorImpl<MCFixup> &Fixups,
                  const MCSubtargetInfo &STI) const
{
  uint32_t Binary = getBinaryCodeForInstr(MI, Fixups, STI);

  // Check for unimplemented opcodes.
  // Unfortunately in CPU0 both NOT and SLL will come in with Binary == 0
  // so we have to special check for them.
  unsigned Opcode = MI.getOpcode();
  if ((Opcode != Cpu0::NOP) && (Opcode != Cpu0::SHL) && !Binary)
    llvm_unreachable("unimplemented opcode in encodeInstruction()");

  const MCInstrDesc &Desc = MCII.get(MI.getOpcode());
  uint64_t TSFlags = Desc.TSFlags;

  // Pseudo instructions don't get encoded and shouldn't be here
  // in the first place!
  if ((TSFlags & Cpu0II::FormMask) == Cpu0II::Pseudo)
    llvm_unreachable("Pseudo opcode found in encodeInstruction()");

  // For now all instructions are 4 bytes
  int Size = 4; // FIXME: Have Desc.getSize() return the correct value!

  EmitInstruction(Binary, Size, OS);
}

//@getExprOpValue {
unsigned Cpu0MCCodeEmitter::
getExprOpValue(const MCExpr *Expr,SmallVectorImpl<MCFixup> &Fixups,
               const MCSubtargetInfo &STI) const {
//@getExprOpValue body {
  MCExpr::ExprKind Kind = Expr->getKind();
  if (Kind == MCExpr::Constant) {
    return cast<MCConstantExpr>(Expr)->getValue();
  }

  if (Kind == MCExpr::Binary) {
    unsigned Res = getExprOpValue(cast<MCBinaryExpr>(Expr)->getLHS(), Fixups, STI);
    Res += getExprOpValue(cast<MCBinaryExpr>(Expr)->getRHS(), Fixups, STI);
    return Res;
  }

  if (Kind == MCExpr::Target) {
    const Cpu0MCExpr *Cpu0Expr = cast<Cpu0MCExpr>(Expr);

    Cpu0::Fixups FixupKind = Cpu0::Fixups(0);
    switch (Cpu0Expr->getKind()) {
    default: llvm_unreachable("Unsupported fixup kind for target expression!");
    } // switch
    Fixups.push_back(MCFixup::create(0, Expr, MCFixupKind(FixupKind)));
    return 0;
  }

  // All of the information is in the fixup.
  return 0;
}

/// getMachineOpValue - Return binary encoding of operand. If the machine
/// operand requires relocation, record the relocation and return zero.
unsigned Cpu0MCCodeEmitter::
getMachineOpValue(const MCInst &MI, const MCOperand &MO,
                  SmallVectorImpl<MCFixup> &Fixups,
                  const MCSubtargetInfo &STI) const {
  if (MO.isReg()) {
    unsigned Reg = MO.getReg();
    unsigned RegNo = Ctx.getRegisterInfo()->getEncodingValue(Reg);
    return RegNo;
  } else if (MO.isImm()) {
    return static_cast<unsigned>(MO.getImm());
  } else if (MO.isFPImm()) {
    return static_cast<unsigned>(APFloat(MO.getFPImm())
        .bitcastToAPInt().getHiBits(32).getLimitedValue());
  }
  // MO must be an Expr.
  assert(MO.isExpr());
  return getExprOpValue(MO.getExpr(),Fixups, STI);
}

/// getMemEncoding - Return binary encoding of memory related operand.
/// If the offset operand requires relocation, record the relocation.
unsigned
Cpu0MCCodeEmitter::getMemEncoding(const MCInst &MI, unsigned OpNo,
                                  SmallVectorImpl<MCFixup> &Fixups,
                                  const MCSubtargetInfo &STI) const {
  // Base register is encoded in bits 20-16, offset is encoded in bits 15-0.
  assert(MI.getOperand(OpNo).isReg());
  unsigned RegBits = getMachineOpValue(MI, MI.getOperand(OpNo), Fixups, STI) << 16;
  unsigned OffBits = getMachineOpValue(MI, MI.getOperand(OpNo+1), Fixups, STI);

  return (OffBits & 0xFFFF) | RegBits;
}

#include "Cpu0GenMCCodeEmitter.inc"

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0MCExpr.h

//===-- Cpu0MCExpr.h - Cpu0 specific MC expression classes ------*- C++ -*-===//
//
//                     The LLVM Compiler Infrastructure
//
// This file is distributed under the University of Illinois Open Source
// License. See LICENSE.TXT for details.
//
//===----------------------------------------------------------------------===//

#ifndef LLVM_LIB_TARGET_CPU0_MCTARGETDESC_CPU0MCEXPR_H
#define LLVM_LIB_TARGET_CPU0_MCTARGETDESC_CPU0MCEXPR_H

#include "Cpu0Config.h"
#if CH >= CH5_1

#include "llvm/MC/MCAsmLayout.h"
#include "llvm/MC/MCExpr.h"
#include "llvm/MC/MCValue.h"

namespace llvm {

class Cpu0MCExpr : public MCTargetExpr {
public:
  enum Cpu0ExprKind {
    CEK_None,
    CEK_ABS_HI,
    CEK_ABS_LO,
    CEK_CALL_HI16,
    CEK_CALL_LO16,
    CEK_DTP_HI,
    CEK_DTP_LO,
    CEK_GOT,
    CEK_GOTTPREL,
    CEK_GOT_CALL,
    CEK_GOT_DISP,
    CEK_GOT_HI16,
    CEK_GOT_LO16,
    CEK_GPREL,
    CEK_TLSGD,
    CEK_TLSLDM,
    CEK_TP_HI,
    CEK_TP_LO,
    CEK_Special,
  };

private:
  const Cpu0ExprKind Kind;
  const MCExpr *Expr;

  explicit Cpu0MCExpr(Cpu0ExprKind Kind, const MCExpr *Expr)
    : Kind(Kind), Expr(Expr) {}

public:
  static const Cpu0MCExpr *create(Cpu0ExprKind Kind, const MCExpr *Expr,
                                  MCContext &Ctx);
  static const Cpu0MCExpr *create(const MCSymbol *Symbol,
                                  Cpu0MCExpr::Cpu0ExprKind Kind, MCContext &Ctx);
  static const Cpu0MCExpr *createGpOff(Cpu0ExprKind Kind, const MCExpr *Expr,
                                       MCContext &Ctx);

  /// Get the kind of this expression.
  Cpu0ExprKind getKind() const { return Kind; }

  /// Get the child of this expression.
  const MCExpr *getSubExpr() const { return Expr; }

  void printImpl(raw_ostream &OS, const MCAsmInfo *MAI) const override;
  bool evaluateAsRelocatableImpl(MCValue &Res, const MCAsmLayout *Layout,
                                 const MCFixup *Fixup) const override;
  void visitUsedExpr(MCStreamer &Streamer) const override;
  MCFragment *findAssociatedFragment() const override {
    return getSubExpr()->findAssociatedFragment();
  }

  void fixELFSymbolsInTLSFixups(MCAssembler &Asm) const override;

  static bool classof(const MCExpr *E) {
    return E->getKind() == MCExpr::Target;
  }

  bool isGpOff(Cpu0ExprKind &Kind) const;
  bool isGpOff() const {
    Cpu0ExprKind Kind;
    return isGpOff(Kind);
  }
};
} // end namespace llvm

#endif // #if CH >= CH5_1

#endif

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0MCExpr.cpp

//===-- Cpu0MCExpr.cpp - Cpu0 specific MC expression classes --------------===//
//
//                     The LLVM Compiler Infrastructure
//
// This file is distributed under the University of Illinois Open Source
// License. See LICENSE.TXT for details.
//
//===----------------------------------------------------------------------===//

#include "Cpu0.h"

#if CH >= CH5_1

#include "Cpu0MCExpr.h"
#include "llvm/BinaryFormat/ELF.h"
#include "llvm/MC/MCAsmInfo.h"
#include "llvm/MC/MCAssembler.h"
#include "llvm/MC/MCContext.h"
#include "llvm/MC/MCObjectStreamer.h"
#include "llvm/MC/MCSymbolELF.h"

using namespace llvm;

#define DEBUG_TYPE "cpu0mcexpr"

const Cpu0MCExpr *Cpu0MCExpr::create(Cpu0MCExpr::Cpu0ExprKind Kind,
                                     const MCExpr *Expr, MCContext &Ctx) {
  return new (Ctx) Cpu0MCExpr(Kind, Expr);
}

const Cpu0MCExpr *Cpu0MCExpr::create(const MCSymbol *Symbol, Cpu0MCExpr::Cpu0ExprKind Kind,
                         MCContext &Ctx) {
  const MCSymbolRefExpr *MCSym =
      MCSymbolRefExpr::create(Symbol, MCSymbolRefExpr::VK_None, Ctx);
  return new (Ctx) Cpu0MCExpr(Kind, MCSym);
}

const Cpu0MCExpr *Cpu0MCExpr::createGpOff(Cpu0MCExpr::Cpu0ExprKind Kind,
                                          const MCExpr *Expr, MCContext &Ctx) {
  return create(Kind, create(CEK_None, create(CEK_GPREL, Expr, Ctx), Ctx), Ctx);
}

void Cpu0MCExpr::printImpl(raw_ostream &OS, const MCAsmInfo *MAI) const {
  int64_t AbsVal;

  switch (Kind) {
  case CEK_None:
  case CEK_Special:
    llvm_unreachable("CEK_None and CEK_Special are invalid");
    break;
  case CEK_CALL_HI16:
    OS << "%call_hi";
    break;
  case CEK_CALL_LO16:
    OS << "%call_lo";
    break;
  case CEK_DTP_HI:
    OS << "%dtp_hi";
    break;
  case CEK_DTP_LO:
    OS << "%dtp_lo";
    break;
  case CEK_GOT:
    OS << "%got";
    break;
  case CEK_GOTTPREL:
    OS << "%gottprel";
    break;
  case CEK_GOT_CALL:
    OS << "%call16";
    break;
  case CEK_GOT_DISP:
    OS << "%got_disp";
    break;
  case CEK_GOT_HI16:
    OS << "%got_hi";
    break;
  case CEK_GOT_LO16:
    OS << "%got_lo";
    break;
  case CEK_GPREL:
    OS << "%gp_rel";
    break;
  case CEK_ABS_HI:
    OS << "%hi";
    break;
  case CEK_ABS_LO:
    OS << "%lo";
    break;
  case CEK_TLSGD:
    OS << "%tlsgd";
    break;
  case CEK_TLSLDM:
    OS << "%tlsldm";
    break;
  case CEK_TP_HI:
    OS << "%tp_hi";
    break;
  case CEK_TP_LO:
    OS << "%tp_lo";
    break;
  }

  OS << '(';
  if (Expr->evaluateAsAbsolute(AbsVal))
    OS << AbsVal;
  else
    Expr->print(OS, MAI, true);
  OS << ')';
}

bool
Cpu0MCExpr::evaluateAsRelocatableImpl(MCValue &Res,
                                      const MCAsmLayout *Layout,
                                      const MCFixup *Fixup) const {
  return getSubExpr()->evaluateAsRelocatable(Res, Layout, Fixup);
}

void Cpu0MCExpr::visitUsedExpr(MCStreamer &Streamer) const {
  Streamer.visitUsedExpr(*getSubExpr());
}

void Cpu0MCExpr::fixELFSymbolsInTLSFixups(MCAssembler &Asm) const {
  switch ((int)getKind()) {
  case CEK_None:
  case CEK_Special:
    llvm_unreachable("CEK_None and CEK_Special are invalid");
    break;
  case CEK_CALL_HI16:
  case CEK_CALL_LO16:
    break;
  }
}

bool Cpu0MCExpr::isGpOff(Cpu0ExprKind &Kind) const {
  if (const Cpu0MCExpr *S1 = dyn_cast<const Cpu0MCExpr>(getSubExpr())) {
    if (const Cpu0MCExpr *S2 = dyn_cast<const Cpu0MCExpr>(S1->getSubExpr())) {
      if (S1->getKind() == CEK_None && S2->getKind() == CEK_GPREL) {
        Kind = getKind();
        return true;
      }
    }
  }
  return false;
}

#endif

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0MCTargetDesc.h

MCCodeEmitter *createCpu0MCCodeEmitterEB(const MCInstrInfo &MCII,
                                         const MCRegisterInfo &MRI,
                                         MCContext &Ctx);
MCCodeEmitter *createCpu0MCCodeEmitterEL(const MCInstrInfo &MCII,
                                         const MCRegisterInfo &MRI,
                                         MCContext &Ctx);

MCAsmBackend *createCpu0AsmBackend(const Target &T,
                                   const MCSubtargetInfo &STI,
                                   const MCRegisterInfo &MRI,
                                   const MCTargetOptions &Options);

std::unique_ptr<MCObjectTargetWriter> createCpu0ELFObjectWriter(const Triple &TT);

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0MCTargetDesc.cpp

static MCStreamer *createMCStreamer(const Triple &TT, MCContext &Context,
                                    std::unique_ptr<MCAsmBackend> &&MAB,
                                    std::unique_ptr<MCObjectWriter> &&OW,
                                    std::unique_ptr<MCCodeEmitter> &&Emitter,
                                    bool RelaxAll) {
  return createELFStreamer(Context, std::move(MAB), std::move(OW),
                           std::move(Emitter), RelaxAll);;
}

static MCTargetStreamer *createCpu0AsmTargetStreamer(MCStreamer &S,
                                                     formatted_raw_ostream &OS,
                                                     MCInstPrinter *InstPrint,
                                                     bool isVerboseAsm) {
  return new Cpu0TargetAsmStreamer(S, OS);
}

extern "C" void LLVMInitializeCpu0TargetMC() {

     // Register the elf streamer.
    TargetRegistry::RegisterELFStreamer(*T, createMCStreamer);

    // Register the asm target streamer.
    TargetRegistry::RegisterAsmTargetStreamer(*T, createCpu0AsmTargetStreamer);

    // Register the asm backend.
    TargetRegistry::RegisterMCAsmBackend(*T, createCpu0AsmBackend);

  // Register the MC Code Emitter
  TargetRegistry::RegisterMCCodeEmitter(TheCpu0Target,
                                        createCpu0MCCodeEmitterEB);
  TargetRegistry::RegisterMCCodeEmitter(TheCpu0elTarget,
                                        createCpu0MCCodeEmitterEL);

}

lbdex/chapters/Chapter5_1/Cpu0MCInstLower.h

#include "MCTargetDesc/Cpu0MCExpr.h"

Work flow

In Chapter 3_2, OutStreamer->emitInstruction prints the assembly code. To support ELF object file generation, this chapter creates MCELFObjectStreamer, which inherits from OutStreamer by calling createELFStreamer in Cpu0MCTargetDesc.cpp above.

Once MCELFObjectStreamer is created, OutStreamer->emitInstruction will work with other code added in the MCTargetDesc directory of this chapter. The details of the explanation are as follows:

llvm/include/llvm/CodeGen/AsmPrinter.h

class AsmPrinter : public MachineFunctionPass {
public:
  ...
  std::unique_ptr<MCStreamer> OutStreamer;
  ...
}

lbdex/chapters/Chapter3_2/Cpu0AsmPrinter.h

class LLVM_LIBRARY_VISIBILITY Cpu0AsmPrinter : public AsmPrinter {

lbdex/chapters/Chapter3_2/Cpu0AsmPrinter.cpp

void Cpu0AsmPrinter::emitInstruction(const MachineInstr *MI) {
  ...
  do {
    ...
    OutStreamer->emitInstruction(TmpInst0, getSubtargetInfo());
    ...
  } while ((++I != E) && I->isInsideBundle()); // Delay slot check
}

Fig. 32 Calling Functions of elf encoder

• AsmPrinter::OutStreamer is nMCObjectStreamer if llc -filetype=obj; AsmPrinter::OutStreamer is nMCAsmStreamer if llc -filetype=asm as Fig. 24.

The ELF encoder calling functions are shown in Fig. 32 above. AsmPrinter::OutStreamer is set to MCObjectStreamer by the llc driver when the user inputs llc -filetype=obj.

Fig. 33 DFD flow for instruction encode

The instruction operand information for the encoder is obtained as shown in Fig. 33 above. The steps are as follows:

1. The function encodeInstruction() passes MI.Opcode to getBinaryCodeForInstr().

2. getBinaryCodeForInstr() passes MI.Operand[n] to getMachineOpValue(), and then,

3. It retrieves the register number by calling getMachineOpValue().

4. getBinaryCodeForInstr() returns MI with all register numbers to encodeInstruction().

The MI.Opcode is set in the Instruction Selection Stage. The table generation function getBinaryCodeForInstr() gathers all operand information from the .td files defined by the programmer, as shown in Fig. 34.

Fig. 34 Instruction encode, for instance: addu $v0, $at, $v1n v0:MI.getOperand(0), at:MI.getOperand(1), v1:MI.getOperand(2)

For instance, the Cpu0 backend will generate “addu $v0, $at, $v1” for the IR “%0 = add %1, %2” once LLVM allocates registers $v0, $at, and $v1 for operands %0, %1, and %2 individually. The MCOperand structure for MI.Operands[] includes the register number set in the pass where LLVM allocates registers, which can be retrieved in getMachineOpValue().

The function getEncodingValue(Reg) in getMachineOpValue(), as shown below, retrieves the RegNo for encoding from register names such as AT, V0, or V1, using table generation information from Cpu0RegisterInfo.td. My comments are after “///”.

include//llvm/MC/MCRegisterInfo.h

void InitMCRegisterInfo(...,
                        const uint16_t *RET) {
  ...
  RegEncodingTable = RET;
}

unsigned Cpu0MCCodeEmitter::
getMachineOpValue(const MCInst &MI, const MCOperand &MO,
                  SmallVectorImpl<MCFixup> &Fixups,
                  const MCSubtargetInfo &STI) const {
  if (MO.isReg()) {
    unsigned Reg = MO.getReg();
    unsigned RegNo = Ctx.getRegisterInfo()->getEncodingValue(Reg);
    return RegNo;
  ...
}

include/llvm/MC/MCRegisterInfo.h

void InitMCRegisterInfo(...,
                        const uint16_t *RET) {
  ...
  RegEncodingTable = RET;
}

 /// \brief Returns the encoding for RegNo
uint16_t getEncodingValue(unsigned RegNo) const {
  assert(RegNo < NumRegs &&
         "Attempting to get encoding for invalid register number!");
  return RegEncodingTable[RegNo];
}

lbdex/chapters/Chapter5_1/Cpu0RegisterInfo.td

let Namespace = "Cpu0" in {
  ...
  def AT   : Cpu0GPRReg<1,  "1">,    DwarfRegNum<[1]>;
  def V0   : Cpu0GPRReg<2,  "2">,    DwarfRegNum<[2]>;
  def V1   : Cpu0GPRReg<3,  "3">,    DwarfRegNum<[3]>;
  ...
}

build/lib/Target/Cpu0/Cpu0GenRegisterInfo.inc

namespace Cpu0 {
enum {
  NoRegister,
  AT = 1,
  ...
  V0 = 19,
  V1 = 20,
  NUM_TARGET_REGS       // 21
};
} // end namespace Cpu0

extern const uint16_t Cpu0RegEncodingTable[] = {
  0,
  1,     /// 1, AT
  1,
  12,
  11,
  0,
  0,
  14,
  0,
  13,
  15,
  0,
  4,
  5,
  9,
  10,
  7,
  8,
  6,
  2,    /// 19, V0
  3,    /// 20, V1
};

static inline void InitCpu0MCRegisterInfo(MCRegisterInfo *RI, ...) {
  RI->InitMCRegisterInfo(..., Cpu0RegEncodingTable);

The applyFixup() function in Cpu0AsmBackend.cpp will fix up the jeq, jub, and other instructions related to “address control flow statements” or “function call statements” used in later chapters.

The setting of true or false for each relocation record in needsRelocateWithSymbol() of Cpu0ELFObjectWriter.cpp depends on whether this relocation record needs to adjust the address value during linking.

• If set to true, the linker has the opportunity to adjust this address value with the correct information.

• If set to false, the linker lacks the correct information to adjust this relocation record.

The concept of relocation records will be introduced in a later chapter on ELF Support.

When emitting ELF object format instructions, the EncodeInstruction() function in Cpu0MCCodeEmitter.cpp will be called, as it overrides the function of the same name in the parent class MCCodeEmitter.

lbdex/chapters/Chapter2/Cpu0InstrInfo.td

// Address operand
def mem : Operand<iPTR> {
  let PrintMethod = "printMemOperand";
  let MIOperandInfo = (ops GPROut, simm16);
  let EncoderMethod = "getMemEncoding";

}

class LoadM32<bits<8> op, string instr_asm, PatFrag OpNode,
                   bit Pseudo = 0>
  : LoadM<op, instr_asm, OpNode, GPROut, mem, Pseudo> {
}

// 32-bit store.
class StoreM32<bits<8> op, string instr_asm, PatFrag OpNode,
                    bit Pseudo = 0>
  : StoreM<op, instr_asm, OpNode, GPROut, mem, Pseudo> {
}

As shown in Fig. 4, ld and st follow the L-Type format, whereas ADD and similar instructions follow the R-Type format.

The statement “let EncoderMethod = “getMemEncoding”;” in Cpu0InstrInfo.td, as mentioned above, ensures that LLVM calls the function getMemEncoding() whenever an ld or st instruction is issued in the ELF object file. This happens because both of these instructions use the mem operand.

Below is the implementation and the corresponding TableGen code for them.

lbdex/chapters/Chapter5_1/Cpu0InstrInfo.td

def mem : Operand<iPTR> {
  let PrintMethod = "printMemOperand";
  let MIOperandInfo = (ops GPROut, simm16);
  let EncoderMethod = "getMemEncoding";
}

lbdex/chapters/Chapter5_1/MCTargetDesc/Cpu0MCCodeEmitter.cpp

/// If the offset operand requires relocation, record the relocation.
unsigned
Cpu0MCCodeEmitter::getMemEncoding(const MCInst &MI, unsigned OpNo,
                                  SmallVectorImpl<MCFixup> &Fixups,
                                  const MCSubtargetInfo &STI) const {
  // Base register is encoded in bits 20-16, offset is encoded in bits 15-0.
  assert(MI.getOperand(OpNo).isReg());
  unsigned RegBits = getMachineOpValue(MI, MI.getOperand(OpNo), Fixups, STI) << 16;
  unsigned OffBits = getMachineOpValue(MI, MI.getOperand(OpNo+1), Fixups, STI);

  return (OffBits & 0xFFFF) | RegBits;
}

#include "Cpu0GenMCCodeEmitter.inc"

build/lib/Target/Cpu0/Cpu0GenMCCodeEmitter.inc

case Cpu0::LD
case Cpu0::ST: {
  // op: ra
  op = getMachineOpValue(MI, MI.getOperand(0), Fixups, STI);
  op &= UINT64_C(15);
  op <<= 20;
  Value |= op;
  // op: addr
  op = getMemEncoding(MI, 1, Fixups, STI);
  op &= UINT64_C(1048575);
  Value |= op;
  break;
}

The other functions in Cpu0MCCodeEmitter.cpp are called by these two functions.

After encoding, the following code will write the encoded instructions to the buffer.

src/lib/MC/MCELFStreamer.cpp

void MCELFStreamer::EmitInstToData(const MCInst &Inst,
                                   const MCSubtargetInfo &STI) {
  ...
  DF->setHasInstructions(true);
  DF->getContents().append(Code.begin(), Code.end());
  ...
}

Then, ELFObjectWriter::writeObject() will write the buffer to the ELF file.

Backend Target Registration Structure

Now, let’s examine Cpu0MCTargetDesc.cpp. Cpu0MCTargetDesc.cpp performs target registration as mentioned in the previous chapter here [1]. The assembly output has been explained here [2].

The register functions for ELF object output are listed as follows:

Register function of elf streamer

// Register the elf streamer.
TargetRegistry::RegisterELFStreamer(*T, createMCStreamer);

  static MCStreamer *createMCStreamer(const Triple &TT, MCContext &Context,
                                      MCAsmBackend &MAB, raw_pwrite_stream &OS,
                                      MCCodeEmitter *Emitter, bool RelaxAll) {
    return createELFStreamer(Context, MAB, OS, Emitter, RelaxAll);
  }

  // MCELFStreamer.cpp
  MCStreamer *llvm::createELFStreamer(MCContext &Context, MCAsmBackend &MAB,
                                      raw_pwrite_stream &OS, MCCodeEmitter *CE,
                                      bool RelaxAll) {
    MCELFStreamer *S = new MCELFStreamer(Context, MAB, OS, CE);
    if (RelaxAll)
      S->getAssembler().setRelaxAll(true);
    return S;
  }

Above, createELFStreamer handles the ELF object streamer. Fig. 35 below shows the MCELFStreamer inheritance tree. You can find many operations within that inheritance tree.

Fig. 35 MCELFStreamer inherit tree

Register function of asm target streamer

// Register the asm target streamer.
TargetRegistry::RegisterAsmTargetStreamer(*T, createCpu0AsmTargetStreamer);

  static MCTargetStreamer *createCpu0AsmTargetStreamer(MCStreamer &S,
                                                       formatted_raw_ostream &OS,
                                                       MCInstPrinter *InstPrint,
                                                       bool isVerboseAsm) {
    return new Cpu0TargetAsmStreamer(S, OS);
  }

    // Cpu0TargetStreamer.h
    class Cpu0TargetStreamer : public MCTargetStreamer {
    public:
      Cpu0TargetStreamer(MCStreamer &S);
    };

    // This part is for ascii assembly output
    class Cpu0TargetAsmStreamer : public Cpu0TargetStreamer {
      formatted_raw_ostream &OS;

    public:
      Cpu0TargetAsmStreamer(MCStreamer &S, formatted_raw_ostream &OS);
    };

Above instancing MCTargetStreamer instance.

Register function of MC Code Emitter

// Register the MC Code Emitter
TargetRegistry::RegisterMCCodeEmitter(TheCpu0Target,
                                      createCpu0MCCodeEmitterEB);
TargetRegistry::RegisterMCCodeEmitter(TheCpu0elTarget,
                                      createCpu0MCCodeEmitterEL);

  // Cpu0MCCodeEmitter.cpp
  MCCodeEmitter *llvm::createCpu0MCCodeEmitterEB(const MCInstrInfo &MCII,
                                                 const MCRegisterInfo &MRI,
                                                 MCContext &Ctx) {
    return new Cpu0MCCodeEmitter(MCII, Ctx, false);
  }

  MCCodeEmitter *llvm::createCpu0MCCodeEmitterEL(const MCInstrInfo &MCII,
                                                 const MCRegisterInfo &MRI,
                                                 MCContext &Ctx) {
    return new Cpu0MCCodeEmitter(MCII, Ctx, true);
  }

Above, two Cpu0MCCodeEmitter objects are instantiated. One for big-endian and the other for little-endian. They handle the object format generation, while RegisterELFStreamer() reuses the ELF streamer class.

Readers may wonder: “What are the actual arguments in createCpu0MCCodeEmitterEB(const MCInstrInfo &MCII, const MCSubtargetInfo &STI, MCContext &Ctx)?” and “When are they assigned?”

At this point, we have not assigned them yet. Instead, we register the createXXX() function using a function pointer (according to C, TargetRegistry::RegisterXXX(TheCpu0Target, createXXX()), where createXXX is a function pointer).

LLVM stores a function pointer to createXXX() when we call target registration. Later, during the target registration process (RegisterXXX()), LLVM invokes these createXXX() functions with the necessary arguments (LLVM invokes these arguments during run time in LLVM structure)`.

Register function of asm backend

// Register the asm backend.
TargetRegistry::RegisterMCAsmBackend(TheCpu0Target,
                                     createCpu0AsmBackendEB32);
TargetRegistry::RegisterMCAsmBackend(TheCpu0elTarget,
                                     createCpu0AsmBackendEL32);

  // Cpu0AsmBackend.cpp
  MCAsmBackend *llvm::createCpu0AsmBackendEL32(const Target &T,
                                               const MCRegisterInfo &MRI,
                                               const Triple &TT, StringRef CPU) {
    return new Cpu0AsmBackend(T, TT.getOS(), /*IsLittle*/true);
  }

  MCAsmBackend *llvm::createCpu0AsmBackendEB32(const Target &T,
                                               const MCRegisterInfo &MRI,
                                               const Triple &TT, StringRef CPU) {
    return new Cpu0AsmBackend(T, TT.getOS(), /*IsLittle*/false);
  }

    // Cpu0AsmBackend.h
    class Cpu0AsmBackend : public MCAsmBackend {
    ...
    }

The Cpu0AsmBackend class serves as the bridge between assembly and object file generation. Two instances handle big-endian and little-endian formats, respectively.

This class is derived from MCAsmBackend. Most of the code responsible for object file generation is implemented in MCELFStreamer and its parent class, MCAsmBackend.

[1]

http://jonathan2251.github.io/lbd/llvmstructure.html#target-registration

[2]

http://jonathan2251.github.io/lbd/backendstructure.html#add-asmprinter
