Arithmetic and logic instructions

This chapter adds more Cpu0 arithmetic instructions support first. The section Display llvm IR nodes with Graphviz will show you the steps of DAG optimization and their corresponding llc display options. These DAGs translation existed in some steps of optimization can be displayed by the graphic tool of Graphviz which supply useful information in graphic view. Logic instructions support will come after arithmetic section. In spite of that llvm backend handle the IR only, we get the IR from the corresponding C operators with designed C example code. Through compiling with C code, readers can know exactly what kind of C statements are handled by each chapter’s appending code. Instead of focusing on classes relationship in this backend structure of last chapter, readers should focus on the mapping of C operators and llvm IR and how to define the mapping relationship of IR and instructions in td. HILO and C0 register class are defined in this chapter. Readers will know how to handle other register classes beside general purpose register class, and why they are needed, from this chapter.

Arithmetic

The code added in Chapter4_1/ to support arithmetic instructions as follows,

lbdex/chapters/Chapter4_1/Cpu0Subtarget.cpp

static cl::opt<bool> EnableOverflowOpt
                ("cpu0-enable-overflow", cl::Hidden, cl::init(false),
                 cl::desc("Use trigger overflow instructions add and sub \
                 instead of non-overflow instructions addu and subu"));
Cpu0Subtarget::Cpu0Subtarget(const Triple &TT, const std::string &CPU,
                             const std::string &FS, bool little,
                             const Cpu0TargetMachine &_TM) :
...
  EnableOverflow = EnableOverflowOpt;
  ...
}

lbdex/chapters/Chapter4_1/Cpu0InstrInfo.td

// Only op DAG can be disabled by ch4_1, data DAG cannot.
def SDT_Cpu0DivRem       : SDTypeProfile<0, 2,
                                         [SDTCisInt<0>,
                                          SDTCisSameAs<0, 1>]>;
// DivRem(u) nodes
def Cpu0DivRem    : SDNode<"Cpu0ISD::DivRem", SDT_Cpu0DivRem,
                           [SDNPOutGlue]>;
def Cpu0DivRemU   : SDNode<"Cpu0ISD::DivRemU", SDT_Cpu0DivRem,
                           [SDNPOutGlue]>;
let Predicates = [Ch4_1] in {
class shift_rotate_reg<bits<8> op, bits<4> isRotate, string instr_asm,
                       SDNode OpNode, RegisterClass RC>:
  FA<op, (outs GPROut:$ra), (ins RC:$rb, RC:$rc),
     !strconcat(instr_asm, "\t$ra, $rb, $rc"),
     [(set GPROut:$ra, (OpNode RC:$rb, RC:$rc))], IIAlu> {
  let shamt = 0;
}
}
let Predicates = [Ch4_1] in {
// Mul, Div
class Mult<bits<8> op, string instr_asm, InstrItinClass itin,
           RegisterClass RC, list<Register> DefRegs>:
  FA<op, (outs), (ins RC:$ra, RC:$rb),
     !strconcat(instr_asm, "\t$ra, $rb"), [], itin> {
  let rc = 0;
  let shamt = 0;
  let isCommutable = 1;
  let Defs = DefRegs;
  let hasSideEffects = 0;
}

class Mult32<bits<8> op, string instr_asm, InstrItinClass itin>:
  Mult<op, instr_asm, itin, CPURegs, [HI, LO]>;

class Div<SDNode opNode, bits<8> op, string instr_asm, InstrItinClass itin,
          RegisterClass RC, list<Register> DefRegs>:
  FA<op, (outs), (ins RC:$ra, RC:$rb),
     !strconcat(instr_asm, "\t$ra, $rb"),
     [(opNode RC:$ra, RC:$rb)], itin> {
  let rc = 0;
  let shamt = 0;
  let Defs = DefRegs;
}

class Div32<SDNode opNode, bits<8> op, string instr_asm, InstrItinClass itin>:
  Div<opNode, op, instr_asm, itin, CPURegs, [HI, LO]>;

// Move from Lo/Hi
class MoveFromLOHI<bits<8> op, string instr_asm, RegisterClass RC,
                   list<Register> UseRegs>:
  FA<op, (outs RC:$ra), (ins),
     !strconcat(instr_asm, "\t$ra"), [], IIHiLo> {
  let rb = 0;
  let rc = 0;
  let shamt = 0;
  let Uses = UseRegs;
  let hasSideEffects = 0;
}

// Move to Lo/Hi
class MoveToLOHI<bits<8> op, string instr_asm, RegisterClass RC,
                 list<Register> DefRegs>:
  FA<op, (outs), (ins RC:$ra),
     !strconcat(instr_asm, "\t$ra"), [], IIHiLo> {
  let rb = 0;
  let rc = 0;
  let shamt = 0;
  let Defs = DefRegs;
  let hasSideEffects = 0;
}

// Move from C0 (co-processor 0) Register
class MoveFromC0<bits<8> op, string instr_asm, RegisterClass RC>:
  FA<op, (outs), (ins RC:$ra, C0Regs:$rb),
     !strconcat(instr_asm, "\t$ra, $rb"), [], IIAlu> {
  let rc = 0;
  let shamt = 0;
  let hasSideEffects = 0;
}

// Move to C0 Register
class MoveToC0<bits<8> op, string instr_asm, RegisterClass RC>:
  FA<op, (outs C0Regs:$ra), (ins RC:$rb),
     !strconcat(instr_asm, "\t$ra, $rb"), [], IIAlu> {
  let rc = 0;
  let shamt = 0;
  let hasSideEffects = 0;
}

// Move from C0 register to C0 register
class C0Move<bits<8> op, string instr_asm>:
  FA<op, (outs C0Regs:$ra), (ins C0Regs:$rb),
     !strconcat(instr_asm, "\t$ra, $rb"), [], IIAlu> {
  let rc = 0;
  let shamt = 0;
  let hasSideEffects = 0;
}
} // let Predicates = [Ch4_1]
let Predicates = [Ch4_1] in {
let Predicates = [DisableOverflow] in {
def SUBu    : ArithLogicR<0x12, "subu", sub, IIAlu, CPURegs>;
}
let Predicates = [EnableOverflow] in {
def ADD     : ArithLogicR<0x13, "add", add, IIAlu, CPURegs, 1>;
def SUB     : ArithLogicR<0x14, "sub", sub, IIAlu, CPURegs>;
}
def MUL     : ArithLogicR<0x17, "mul", mul, IIImul, CPURegs, 1>;
}
let Predicates = [Ch4_1] in {
// sra is IR node for ashr llvm IR instruction of .bc
def ROL     : shift_rotate_imm32<0x1b, 0x01, "rol", rotl>;
def ROR     : shift_rotate_imm32<0x1c, 0x01, "ror", rotr>;
def SRA     : shift_rotate_imm32<0x1d, 0x00, "sra", sra>;
}
let Predicates = [Ch4_1] in {
// srl is IR node for lshr llvm IR instruction of .bc
def SHR     : shift_rotate_imm32<0x1f, 0x00, "shr", srl>;
def SRAV    : shift_rotate_reg<0x20, 0x00, "srav", sra, CPURegs>;
def SHLV    : shift_rotate_reg<0x21, 0x00, "shlv", shl, CPURegs>;
def SHRV    : shift_rotate_reg<0x22, 0x00, "shrv", srl, CPURegs>;
def ROLV    : shift_rotate_reg<0x23, 0x01, "rolv", rotl, CPURegs>;
def RORV    : shift_rotate_reg<0x24, 0x01, "rorv", rotr, CPURegs>;
}
let Predicates = [Ch4_1] in {
/// Multiply and Divide Instructions.
def MULT    : Mult32<0x41, "mult", IIImul>;
def MULTu   : Mult32<0x42, "multu", IIImul>;
def SDIV    : Div32<Cpu0DivRem, 0x43, "div", IIIdiv>;
def UDIV    : Div32<Cpu0DivRemU, 0x44, "divu", IIIdiv>;

def MFHI    : MoveFromLOHI<0x46, "mfhi", CPURegs, [HI]>;
def MFLO    : MoveFromLOHI<0x47, "mflo", CPURegs, [LO]>;
def MTHI    : MoveToLOHI<0x48, "mthi", CPURegs, [HI]>;
def MTLO    : MoveToLOHI<0x49, "mtlo", CPURegs, [LO]>;

def MFC0    : MoveFromC0<0x50, "mfc0", CPURegs>;
def MTC0    : MoveToC0<0x51, "mtc0", CPURegs>;

def C0MOVE  : C0Move<0x52, "c0mov">;
}

lbdex/chapters/Chapter4_1/Cpu0ISelLowering.h

    SDValue PerformDAGCombine(SDNode *N, DAGCombinerInfo &DCI) const override;

lbdex/chapters/Chapter4_1/Cpu0ISelLowering.cpp

Cpu0TargetLowering::Cpu0TargetLowering(const Cpu0TargetMachine &TM,
                                       const Cpu0Subtarget &STI)
    : TargetLowering(TM), Subtarget(STI), ABI(TM.getABI()) {

  setOperationAction(ISD::SDIV, MVT::i32, Expand);
  setOperationAction(ISD::SREM, MVT::i32, Expand);
  setOperationAction(ISD::UDIV, MVT::i32, Expand);
  setOperationAction(ISD::UREM, MVT::i32, Expand);
  setTargetDAGCombine(ISD::SDIVREM);
  setTargetDAGCombine(ISD::UDIVREM);
  ...
}
...
static SDValue performDivRemCombine(SDNode *N, SelectionDAG& DAG,
                                    TargetLowering::DAGCombinerInfo &DCI,
                                    const Cpu0Subtarget &Subtarget) {
  if (DCI.isBeforeLegalizeOps())
    return SDValue();

  EVT Ty = N->getValueType(0);
  unsigned LO = Cpu0::LO;
  unsigned HI = Cpu0::HI;
  unsigned Opc = N->getOpcode() == ISD::SDIVREM ? Cpu0ISD::DivRem :
                                                  Cpu0ISD::DivRemU;
  SDLoc DL(N);

  SDValue DivRem = DAG.getNode(Opc, DL, MVT::Glue,
                               N->getOperand(0), N->getOperand(1));
  SDValue InChain = DAG.getEntryNode();
  SDValue InGlue = DivRem;

  // insert MFLO
  if (N->hasAnyUseOfValue(0)) {
    SDValue CopyFromLo = DAG.getCopyFromReg(InChain, DL, LO, Ty,
                                            InGlue);
    DAG.ReplaceAllUsesOfValueWith(SDValue(N, 0), CopyFromLo);
    InChain = CopyFromLo.getValue(1);
    InGlue = CopyFromLo.getValue(2);
  }

  // insert MFHI
  if (N->hasAnyUseOfValue(1)) {
    SDValue CopyFromHi = DAG.getCopyFromReg(InChain, DL,
                                            HI, Ty, InGlue);
    DAG.ReplaceAllUsesOfValueWith(SDValue(N, 1), CopyFromHi);
  }

  return SDValue();
}

SDValue Cpu0TargetLowering::PerformDAGCombine(SDNode *N, DAGCombinerInfo &DCI)
  const {
  SelectionDAG &DAG = DCI.DAG;
  unsigned Opc = N->getOpcode();

  switch (Opc) {
  default: break;
  case ISD::SDIVREM:
  case ISD::UDIVREM:
    return performDivRemCombine(N, DAG, DCI, Subtarget);
  }

  return SDValue();
}

lbdex/chapters/Chapter4_1/Cpu0RegisterInfo.td

let Namespace = "Cpu0" in {
  // Hi/Lo registers number and name
  def HI   : Cpu0Reg<0, "ac0">, DwarfRegNum<[18]>;
  def LO   : Cpu0Reg<0, "ac0">, DwarfRegNum<[19]>;
}
...
// Hi/Lo Registers class
def HILO   : RegisterClass<"Cpu0", [i32], 32, (add HI, LO)>;

lbdex/chapters/Chapter4_1/Cpu0Schedule.td

def IIHiLo             : InstrItinClass;
def IIImul             : InstrItinClass;
def IIIdiv             : InstrItinClass;
def Cpu0GenericItineraries : ProcessorItineraries<[ALU, IMULDIV], [], [
  InstrItinData<IIHiLo             , [InstrStage<1,  [IMULDIV]>]>,
  InstrItinData<IIImul             , [InstrStage<17, [IMULDIV]>]>,
  InstrItinData<IIIdiv             , [InstrStage<38, [IMULDIV]>]>,
]>;

lbdex/chapters/Chapter4_1/Cpu0SEISelDAGToDAG.h

  std::pair<SDNode *, SDNode *> selectMULT(SDNode *N, unsigned Opc,
                                           const SDLoc &DL, EVT Ty, bool HasLo,
                                           bool HasHi);

lbdex/chapters/Chapter4_1/Cpu0SEISelDAGToDAG.cpp

/// Select multiply instructions.
std::pair<SDNode *, SDNode *>
Cpu0SEDAGToDAGISel::selectMULT(SDNode *N, unsigned Opc, const SDLoc &DL, EVT Ty,
                             bool HasLo, bool HasHi) {
  SDNode *Lo = 0, *Hi = 0;
  SDNode *Mul = CurDAG->getMachineNode(Opc, DL, MVT::Glue, N->getOperand(0),
                                       N->getOperand(1));
  SDValue InFlag = SDValue(Mul, 0);

  if (HasLo) {
    Lo = CurDAG->getMachineNode(Cpu0::MFLO, DL,
                                Ty, MVT::Glue, InFlag);
    InFlag = SDValue(Lo, 1);
  }
  if (HasHi)
    Hi = CurDAG->getMachineNode(Cpu0::MFHI, DL,
                                Ty, InFlag);

  return std::make_pair(Lo, Hi);
}
bool Cpu0SEDAGToDAGISel::trySelect(SDNode *Node) {
  unsigned Opcode = Node->getOpcode();
  SDLoc DL(Node);

  ///
  // Instruction Selection not handled by the auto-generated
  // tablegen selection should be handled here.
  ///

  ///
  // Instruction Selection not handled by the auto-generated
  // tablegen selection should be handled here.
  ///
  EVT NodeTy = Node->getValueType(0);
  unsigned MultOpc;

  switch(Opcode) {
  default: break;

  case ISD::MULHS:
  case ISD::MULHU: {
    MultOpc = (Opcode == ISD::MULHU ? Cpu0::MULTu : Cpu0::MULT);
    auto LoHi = selectMULT(Node, MultOpc, DL, NodeTy, false, true);
    ReplaceNode(Node, LoHi.second);
    return true;
  }

  case ISD::Constant: {
    const ConstantSDNode *CN = dyn_cast<ConstantSDNode>(Node);
    unsigned Size = CN->getValueSizeInBits(0);

    if (Size == 32)
      break;

    return true;
  }
  }
  ...
}

lbdex/chapters/Chapter4_1/Cpu0SEInstrInfo.h

  void copyPhysReg(MachineBasicBlock &MBB, MachineBasicBlock::iterator MI,
                   const DebugLoc &DL, unsigned DestReg, unsigned SrcReg,
                   bool KillSrc) const override;

lbdex/chapters/Chapter4_1/Cpu0SEInstrInfo.cpp

void Cpu0SEInstrInfo::copyPhysReg(MachineBasicBlock &MBB,
                                  MachineBasicBlock::iterator I,
                                  const DebugLoc &DL, unsigned DestReg,
                                  unsigned SrcReg, bool KillSrc) const {
  unsigned Opc = 0, ZeroReg = 0;

  if (Cpu0::CPURegsRegClass.contains(DestReg)) { // Copy to CPU Reg.
    if (Cpu0::CPURegsRegClass.contains(SrcReg))
      Opc = Cpu0::ADDu, ZeroReg = Cpu0::ZERO;
    else if (SrcReg == Cpu0::HI)
      Opc = Cpu0::MFHI, SrcReg = 0;
    else if (SrcReg == Cpu0::LO)
      Opc = Cpu0::MFLO, SrcReg = 0;
  }
  else if (Cpu0::CPURegsRegClass.contains(SrcReg)) { // Copy from CPU Reg.
    if (DestReg == Cpu0::HI)
      Opc = Cpu0::MTHI, DestReg = 0;
    else if (DestReg == Cpu0::LO)
      Opc = Cpu0::MTLO, DestReg = 0;
  }

  assert(Opc && "Cannot copy registers");

  MachineInstrBuilder MIB = BuildMI(MBB, I, DL, get(Opc));

  if (DestReg)
    MIB.addReg(DestReg, RegState::Define);

  if (ZeroReg)
    MIB.addReg(ZeroReg);

  if (SrcReg)
    MIB.addReg(SrcReg, getKillRegState(KillSrc));
}

+, -, *, <<, and >>

The ADDu, ADD, SUBu, SUB and MUL defined in Chapter4_1/Cpu0InstrInfo.td are for operators +, -, *. SHL (defined before) and SHLV are for <<. SRA, SRAV, SHR and SHRV are for >>.

In RISC CPU, such as Mips, the multiply/divide function unit and add/sub/logic unit are designed from two different hardware circuits, and more, their data path are separate. Cpu0 is same, so these two function units can be executed at same time (instruction level parallelism). Reference [1] for instruction itineraries.

Chapter4_1/ can handle +, -, *, <<, and >> operators in C language. The corresponding llvm IR instructions are add, sub, mul, shl, ashr. The ‘ashr’ instruction (arithmetic shift right) returns the first operand shifted to the right a specified number of bits with sign extension. In brief, we call ashr is “shift with sign extension fill”.

Note

ashr

Example:

<result> = ashr i32 4, 1 ; yields {i32}:result = 2

<result> = ashr i8 -2, 1 ; yields {i8}:result = -1

<result> = ashr i32 1, 32 ; undefined

The semantic of C operator >> for negative operand is dependent on implementation. Most compilers translate it into “shift with sign extension fill”, and Mips sra is this instruction. Following is the Micosoft web site’s explanation,

Note

>>, Microsoft Specific

The result of a right shift of a signed negative quantity is implementation dependent. Although Microsoft C++ propagates the most-significant bit to fill vacated bit positions, there is no guarantee that other implementations will do likewise.

In addition to ashr, the other instruction “shift with zero filled” lshr in llvm (Mips implement lshr with instruction srl) has the following meaning.

Note

lshr

Example: <result> = lshr i8 -2, 1 ; yields {i8}:result = 0x7FFFFFFF

In llvm, IR node sra is defined for ashr IR instruction, and node srl is defined for lshr instruction (We don’t know why it doesn’t use ashr and lshr as the IR node name directly). Summary as the Table: C operator >> implementation.

Table 15 C operator >> implementation
Description Shift with zero filled Shift with signed extension filled
symbol in .bc lshr ashr
symbol in IR node srl sra
Mips instruction srl sra
Cpu0 instruction shr sra
signed example before x >> 1 0xfffffffe i.e. -2 0xfffffffe i.e. -2
signed example after x >> 1 0x7fffffff i.e 2G-1 0xffffffff i.e. -1
unsigned example before x >> 1 0xfffffffe i.e. 4G-2 0xfffffffe i.e. 4G-2
unsigned example after x >> 1 0x7fffffff i.e 2G-1 0xffffffff i.e. 4G-1

lshr: Logical SHift Right

ashr: Arithmetic SHift right

srl: Shift Right Logically

sra: Shift Right Arithmetically

shr: SHift Right

If we consider the x >> 1 definition is x = x/2 for compiler implementation. Then as you can see from Table: C operator >> implementation, lshr will fail on some signed value (such as -2). In the same way, ashr will fail on some unsigned value (such as 4G-2). So, in order to satisfy this definition in both signed and unsigned integers of x, we need these two instructions, lshr and ashr.

Table 16 C operator << implementation
Description Shift with zero filled
symbol in .bc shl
symbol in IR node shl
Mips instruction sll
Cpu0 instruction shl
signed example before x << 1 0x40000000 i.e. 1G
signed example after x << 1 0x80000000 i.e -2G
unsigned example before x << 1 0x40000000 i.e. 1G
unsigned example after x << 1 0x80000000 i.e 2G

Again, consider the x << 1 definition is x = x*2. From Table: C operator << implementation, we see lshr satisfy “unsigned x=1G” but fails on signed x=1G. It’s fine since 2G is out of 32 bits signed integer range (-2G ~ 2G-1). For the overflow case, no way to keep the correct result in register. So, any value in register is OK. You can check that lshr satisfy x = x*2, for all x << 1 and the x result is not out of range, no matter operand x is signed or unsigned integer.

Micorsoft implementation references here [2].

The ‘ashr‘ Instruction” reference here [3], ‘lshr‘ reference here [4].

The srav, shlv and shrv are for two virtual input registers instructions while the sra, ... are for 1 virtual input registers and 1 constant input operands.

Now, let’s build Chapter4_1/ and run with input file ch4_math.ll as follows,

lbdex/input/ch4_math.ll


; Function Attrs: nounwind
define i32 @_Z9test_mathv() #0 {
  %a = alloca i32, align 4
  %b = alloca i32, align 4
  %1 = load i32, i32* %a, align 4
  %2 = load i32, i32* %b, align 4

  %3 = add nsw i32 %1, %2
  %4 = sub nsw i32 %1, %2
  %5 = mul nsw i32 %1, %2
  %6 = shl i32 %1, 2
  %7 = ashr i32 %1, 2
  %8 = lshr i32 %1, 30
  %9 = shl i32 1, %2
  %10 = ashr i32 128, %2
  %11 = ashr i32 %1, %2

  %12 = add nsw i32 %3, %4
  %13 = add nsw i32 %12, %5
  %14 = add nsw i32 %13, %6
  %15 = add nsw i32 %14, %7
  %16 = add nsw i32 %15, %8
  %17 = add nsw i32 %16, %9
  %18 = add nsw i32 %17, %10
  %19 = add nsw i32 %18, %11

  ret i32 %19
}

118-165-78-12:input Jonathan$ /Users/Jonathan/llvm/test/cmake_debug_build/
Debug/bin/llc -march=cpu0 -relocation-model=pic -filetype=asm ch4_math.ll -o -
  ...
        ld    $2, 0($sp)
        ld    $3, 4($sp)
        subu  $4, $3, $2
        addu  $5, $3, $2
        addu  $4, $5, $4
        mul   $5, $3, $2
        addu  $4, $4, $5
        shl   $5, $3, 2
        addu  $4, $4, $5
        sra   $5, $3, 2
        addu  $4, $4, $5
        addiu $5, $zero, 128
        shrv  $5, $5, $2
        addiu $t9, $zero, 1
        shlv  $t9, $t9, $2
        srav  $2, $3, $2
        shr   $3, $3, 30
        addu  $3, $4, $3
        addu  $3, $3, $t9
        addu  $3, $3, $5
        addu  $2, $3, $2
        addiu $sp, $sp, 8
        ret   $lr

Example input ch4_1_math.cpp as the following is the C file which include +, -, *, <<, and >> operators. It will generate corresponding llvm IR instructions, add, sub, mul, shl, ashr by clang as Chapter 3 indicated.

lbdex/input/ch4_1_math.cpp

int test_math()
{
  int a = 5;
  int b = 2;
  unsigned int a1 = -5;
  int c, d, e, f, g, h, i;
  unsigned int f1, g1, h1, i1;

  c = a + b;      // c = 7
  d = a - b;      // d = 3
  e = a * b;      // e = 10
  f = (a << 2);   // f = 20
  f1 = (a1 << 1); // f1 = 0xfffffff6 = -10
  g = (a >> 2);   // g = 1
  g1 = (a1 >> 30); // g1 = 0x03 = 3
  h = (1 << a);   // h = 0x20 = 32
  h1 = (1 << b);  // h1 = 0x04
  i = (0x80 >> a); // i = 0x04
  i1 = (b >> a);  // i1 = 0x0

  return (c+d+e+f+int(f1)+g+(int)g1+h+(int)h1+i+(int)i1);
// 7+3+10+20-10+1+3+32+4+4+0 = 74
}

Cpu0 instructions add and sub will trigger overflow exception while addu and subu truncate overflow value directly. Compile ch4_1_addsuboverflow.cpp with llc -cpu0-enable-overflow=true will generate add and sub instructions as follows,

lbdex/input/ch4_1_addsuboverflow.cpp

#include "debug.h"

int test_add_overflow()
{
  int a = 0x70000000;
  int b = 0x20000000;
  int c = 0;

  c = a + b;

  return 0;
}

int test_sub_overflow()
{
  int a = -0x70000000;
  int b = 0x20000000;
  int c = 0;

  c = a - b;

  return 0;
}
118-165-78-12:input Jonathan$ clang -target mips-unknown-linux-gnu -c
ch4_1_addsuboverflow.cpp -emit-llvm -o ch4_1_addsuboverflow.bc
118-165-78-12:input Jonathan$ llvm-dis ch4_1_addsuboverflow.bc -o -
...
; Function Attrs: nounwind
define i32 @_Z13test_overflowv() #0 {
  ...
  %3 = add nsw i32 %1, %2
  ...
  %6 = sub nsw i32 %4, %5
  ...
}

118-165-78-12:input Jonathan$ /Users/Jonathan/llvm/test/cmake_debug_build/
Debug/bin/llc -march=cpu0 -relocation-model=pic -filetype=asm
-cpu0-enable-overflow=true ch4_1_addsuboverflow.bc -o -
      ...
      add     $3, $4, $3
      ...
      sub     $3, $4, $3
      ...

In modern CPU, programmers are used to using truncate overflow instructions for C operators + and -. Anyway, through option -cpu0-enable-overflow=true, programmer get the chance to compile program with overflow exception program. Usually, this option used in debug purpose. Compile with this option can help to identify the bug and fix it early.

Display llvm IR nodes with Graphviz

The previous section, display the DAG translation process in text on terminal by option llc -debug. The llc also supports the graphic displaying. The section Install other tools on iMac include the download and installation of tool Graphivz. The llc graphic displaying with tool Graphviz is introduced in this section. The graphic displaying is more readable by eyes than displaying text in terminal. It’s not a must-have, but helps a lot especially when you are tired in tracking the DAG translation process. List the llc graphic support options from the sub-section “SelectionDAG Instruction Selection Process” of web “The LLVM Target-Independent Code Generator” [5] as follows,

Note

The llc Graphviz DAG display options

-view-dag-combine1-dags displays the DAG after being built, before the first optimization pass.

-view-legalize-dags displays the DAG before Legalization.

-view-dag-combine2-dags displays the DAG before the second optimization pass.

-view-isel-dags displays the DAG before the Select phase.

-view-sched-dags displays the DAG before Scheduling.

By tracking llc -debug, you can see the steps of DAG translation as follows,

Initial selection DAG
Optimized lowered selection DAG
Type-legalized selection DAG
Optimized type-legalized selection DAG
Legalized selection DAG
Optimized legalized selection DAG
Instruction selection
Selected selection DAG
Scheduling
...

Let’s run llc with option -view-dag-combine1-dags, and open the output result with Graphviz as follows,

118-165-12-177:input Jonathan$ /Users/Jonathan/llvm/test/
cmake_debug_build/Debug/bin/llc -view-dag-combine1-dags -march=cpu0
-relocation-model=pic -filetype=asm ch4_1_mult.bc -o ch4_1_mult.cpu0.s
Writing '/tmp/llvm_84ibpm/dag.main.dot'...  done.
118-165-12-177:input Jonathan$ Graphviz /tmp/llvm_84ibpm/dag.main.dot

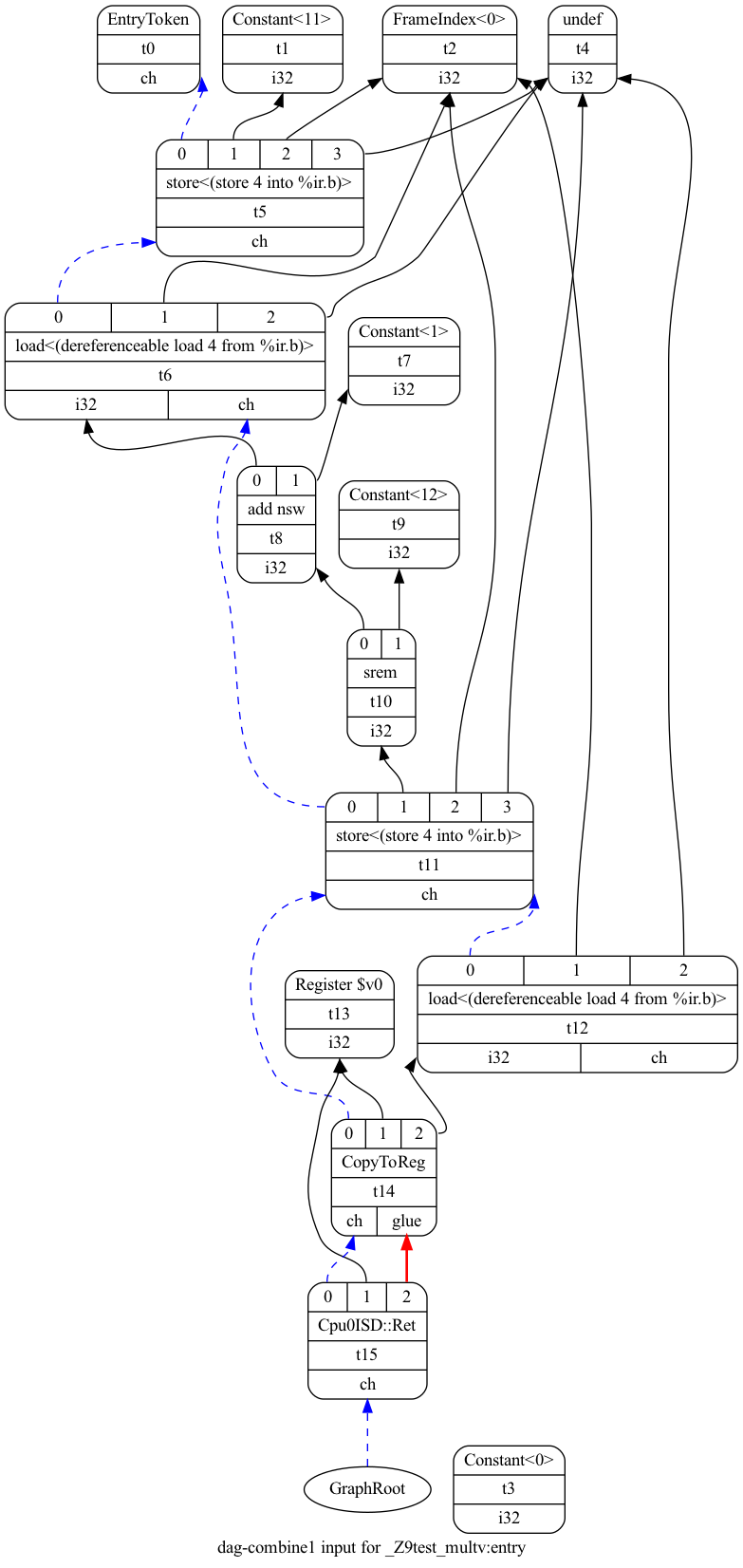

It will show the /tmp/llvm_84ibpm/dag.main.dot as Fig. 16.

_images/17.png

Fig. 16 llc option -view-dag-combine1-dags graphic view

Fig. 16 is the stage of “Initial selection DAG”. List the other view options and their corresponding stages of DAG translation as follows,

Note

llc Graphviz options and the corresponding stages of DAG translation

-view-dag-combine1-dags: Initial selection DAG

-view-legalize-dags: Optimized type-legalized selection DAG

-view-dag-combine2-dags: Legalized selection DAG

-view-isel-dags: Optimized legalized selection DAG

-view-sched-dags: Selected selection DAG

The -view-isel-dags is important and often used by an llvm backend writer because it is the DAGs before instruction selection. In order to writing the pattern match instruction in target description file .td, backend programmer needs knowing what the DAG nodes are for a given C operator.

Operator % and /

The DAG of %

Example input code ch4_1_mult.cpp which contains the C operator “%” and it’s corresponding llvm IR, as follows,

lbdex/input/ch4_1_mult.cpp

int test_mult()
{
  int b = 11;
//  unsigned int b = 11;

  b = (b+1)%12;

  return b;
}
...
define i32 @_Z8test_multv() #0 {
  %b = alloca i32, align 4
  store i32 11, i32* %b, align 4
  %1 = load i32* %b, align 4
  %2 = add nsw i32 %1, 1
  %3 = srem i32 %2, 12
  store i32 %3, i32* %b, align 4
  %4 = load i32* %b, align 4
  ret i32 %4
}

LLVM srem is the IR of corresponding “%”, reference here [6]. Copy the reference as follows,

Note

‘srem’ Instruction

Syntax: <result> = srem <ty> <op1>, <op2> ; yields {ty}:result

Overview: The ‘srem’ instruction returns the remainder from the signed division of its two operands. This instruction can also take vector versions of the values in which case the elements must be integers.

Arguments: The two arguments to the ‘srem’ instruction must be integer or vector of integer values. Both arguments must have identical types.

Semantics: This instruction returns the remainder of a division (where the result is either zero or has the same sign as the dividend, op1), not the modulo operator (where the result is either zero or has the same sign as the divisor, op2) of a value. For more information about the difference, see The Math Forum. For a table of how this is implemented in various languages, please see Wikipedia: modulo operation.

Note that signed integer remainder and unsigned integer remainder are distinct operations; for unsigned integer remainder, use ‘urem’.

Taking the remainder of a division by zero leads to undefined behavior. Overflow also leads to undefined behavior; this is a rare case, but can occur, for example, by taking the remainder of a 32-bit division of -2147483648 by -1. (The remainder doesn’t actually overflow, but this rule lets srem be implemented using instructions that return both the result of the division and the remainder.)

Example: <result> = srem i32 4, %var ; yields {i32}:result = 4 % %var

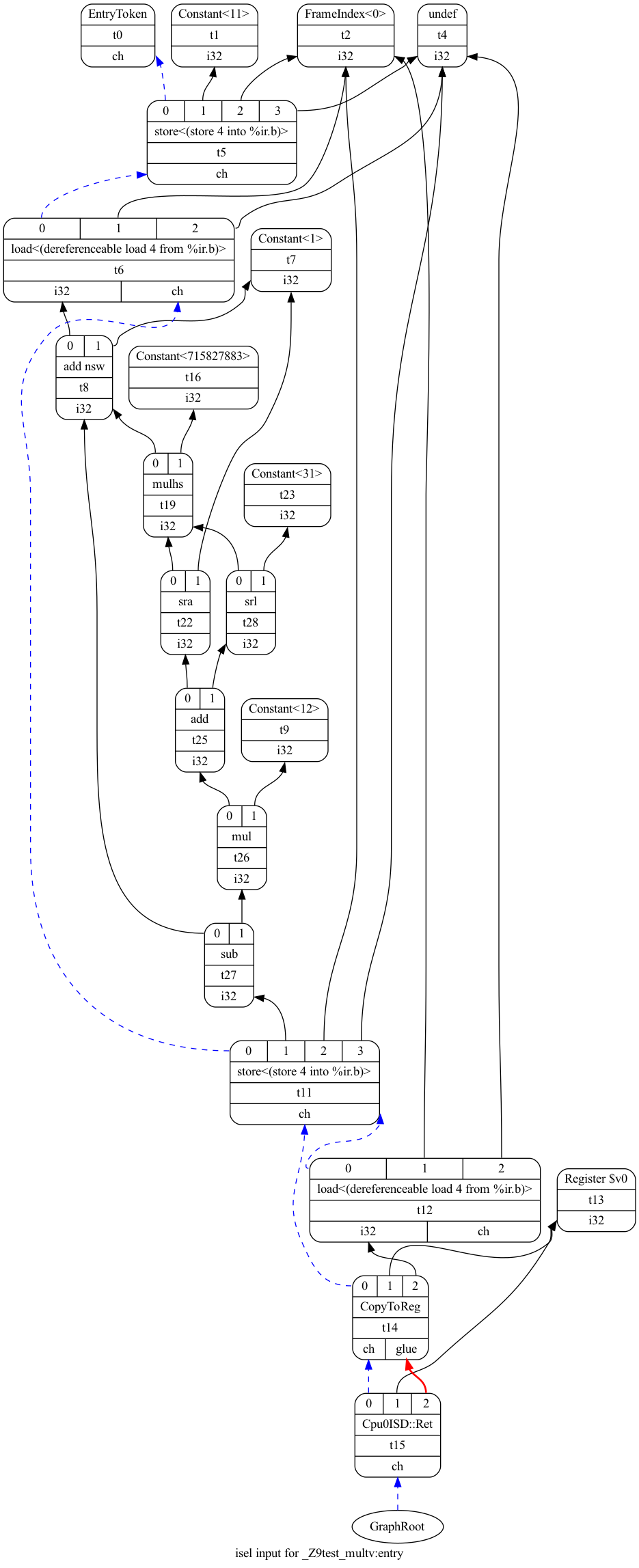

Run Chapter3_5/ with input file ch4_1_mult.bc via option llc –view-isel-dags, will get the following error message and the llvm DAGs of Fig. 17 below.

118-165-79-37:input Jonathan$ /Users/Jonathan/llvm/test/
cmake_debug_build/Debug/bin/llc -march=cpu0 -view-isel-dags -relocation-model=
pic -filetype=asm ch4_1_mult.bc -o -
...
LLVM ERROR: Cannot select: 0x7fa73a02ea10: i32 = mulhs 0x7fa73a02c610,
0x7fa73a02e910 [ID=12]
0x7fa73a02c610: i32 = Constant<12> [ORD=5] [ID=7]
0x7fa73a02e910: i32 = Constant<715827883> [ID=9]
_images/24.png

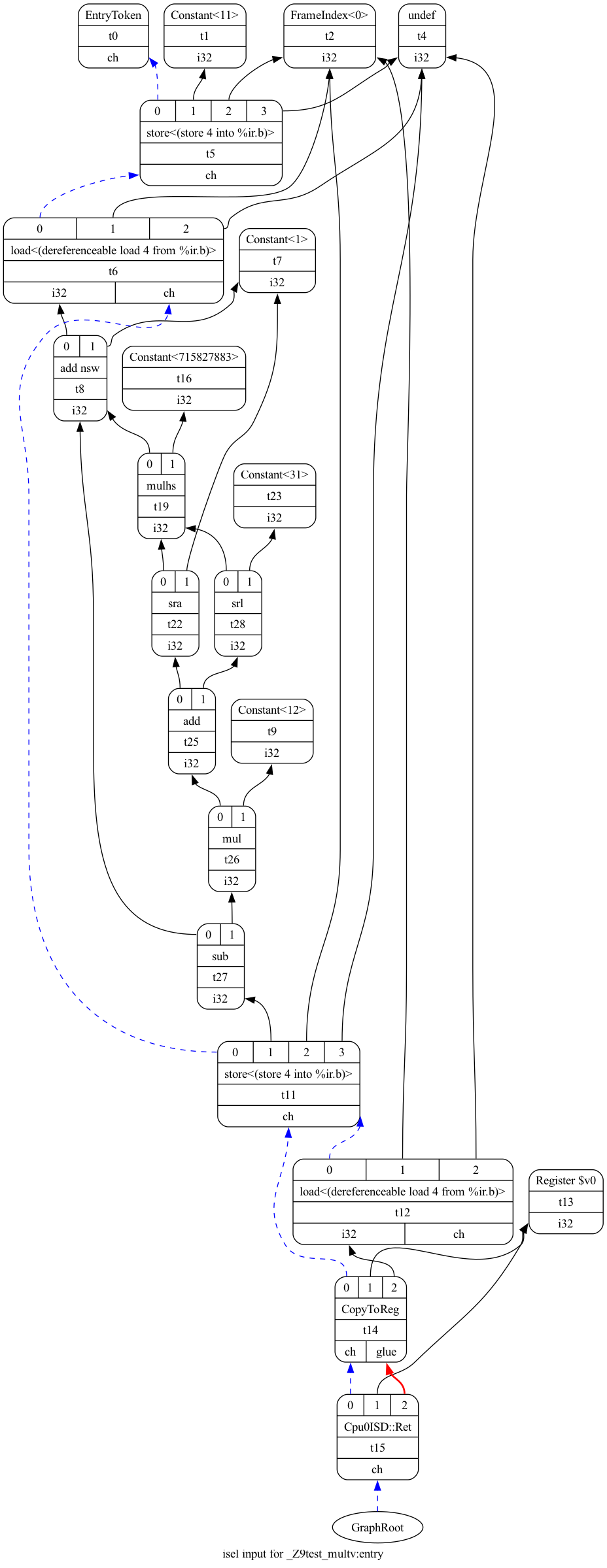

Fig. 17 ch4_1_mult.bc DAG

LLVM replaces srem divide operation with multiply operation in DAG optimization because DIV operation costs more in time than MUL. Example code “int b = 11; b=(b+1)%12;” is translated into DAGs as Fig. 17. The DAGs of generated result is verified and explained by calculating the value in each node. The 0xC*0x2AAAAAAB=0x2,00000004, (mulhs 0xC, 0x2AAAAAAAB) meaning get the Signed mul high word (32bits). Multiply with 2 operands of 1 word size probably generate the 2 word size of result (0x2, 0xAAAAAAAB). The result of high word, in this case is 0x2. The final result (sub 12, 12) is 0 which match the statement (11+1)%12.

Arm solution

To run with ARM solution, change Cpu0InstrInfo.td and Cpu0ISelDAGToDAG.cpp from Chapter4_1/ as follows,

lbdex/chapters/Chapter4_1/Cpu0InstrInfo.td

/// Multiply and Divide Instructions.
def SMMUL   : ArithLogicR<0x41, "smmul", mulhs, IIImul, CPURegs, 1>;
def UMMUL   : ArithLogicR<0x42, "ummul", mulhu, IIImul, CPURegs, 1>;
//def MULT    : Mult32<0x41, "mult", IIImul>;
//def MULTu   : Mult32<0x42, "multu", IIImul>;

lbdex/chapters/Chapter4_1/Cpu0ISelDAGToDAG.cpp

#if 0
/// Select multiply instructions.
std::pair<SDNode*, SDNode*>
Cpu0DAGToDAGISel::SelectMULT(SDNode *N, unsigned Opc, SDLoc DL, EVT Ty,
                             bool HasLo, bool HasHi) {
  SDNode *Lo = 0, *Hi = 0;
  SDNode *Mul = CurDAG->getMachineNode(Opc, DL, MVT::Glue, N->getOperand(0),
                                       N->getOperand(1));
  SDValue InFlag = SDValue(Mul, 0);

  if (HasLo) {
    Lo = CurDAG->getMachineNode(Cpu0::MFLO, DL,
                                Ty, MVT::Glue, InFlag);
    InFlag = SDValue(Lo, 1);
  }
  if (HasHi)
    Hi = CurDAG->getMachineNode(Cpu0::MFHI, DL,
                                Ty, InFlag);

  return std::make_pair(Lo, Hi);
}
#endif

/// Select instructions not customized! Used for
/// expanded, promoted and normal instructions
SDNode* Cpu0DAGToDAGISel::Select(SDNode *Node) {
...
  switch(Opcode) {
  default: break;
#if 0
  case ISD::MULHS:
  case ISD::MULHU: {
    MultOpc = (Opcode == ISD::MULHU ? Cpu0::MULTu : Cpu0::MULT);
    return SelectMULT(Node, MultOpc, DL, NodeTy, false, true).second;
  }
#endif
 ...
}

Let’s run above changes with ch4_1_mult.cpp as well as llc -view-sched-dags option to get Fig. 18. Instruction SMMUL will get the high word of multiply result.

_images/31.png

Fig. 18 DAG for ch4_1_mult.bc with ARM style SMMUL

The following is the result of run above changes with ch4_1_mult.bc.

118-165-66-82:input Jonathan$ /Users/Jonathan/llvm/test/cmake_
debug_build/Debug/bin/llc -march=cpu0 -relocation-model=pic -filetype=asm
ch4_1_mult.bc -o -
  ...
# BB#0:                                 # %entry
  addiu $sp, $sp, -8
$tmp1:
  .cfi_def_cfa_offset 8
  addiu $2, $zero, 0
  st  $2, 4($fp)
  addiu $2, $zero, 11
  st  $2, 0($fp)
  lui $2, 10922
  ori $3, $2, 43691
  addiu $2, $zero, 12
  smmul $3, $2, $3
  shr $4, $3, 31
  sra $3, $3, 1
  addu  $3, $3, $4
  mul $3, $3, $2
  subu  $2, $2, $3
  st  $2, 0($fp)
  addiu $sp, $sp, 8
  ret $lr

The other instruction UMMUL and llvm IR mulhu are unsigned int type for operator %. You can check it by unmark the “unsigned int b = 11;” in ch4_1_mult.cpp.

Using SMMUL instruction to get the high word of multiplication result is adopted in ARM.

Mips solution

Mips uses MULT instruction and save the high & low part to registers HI and LO, respectively. After that, uses mfhi/mflo to move register HI/LO to your general purpose registers. ARM SMMUL is fast if you only need the HI part of result (it ignores the LO part of operation). ARM also provides SMULL (signed multiply long) to get the whole 64 bits result. If you need the LO part of result, you can use Cpu0 MUL instruction to get the LO part of result only. Chapter4_1/ is implemented with Mips MULT style. We choose it as the implementation of this book for adding instructions as less as possible. This approach make Cpu0 better both as a tutorial architecture for school teaching purpose material, and an engineer learning materials in compiler design. The MULT, MULTu, MFHI, MFLO, MTHI, MTLO added in Chapter4_1/Cpu0InstrInfo.td; HI, LO registers in Chapter4_1/Cpu0RegisterInfo.td and Chapter4_1/MCTargetDesc/ Cpu0BaseInfo.h; IIHiLo, IIImul in Chapter4_1/Cpu0Schedule.td; SelectMULT() in Chapter4_1/Cpu0ISelDAGToDAG.cpp are for Mips style implementation.

The related DAG nodes, mulhs and mulhu, both are used in Chapter4_1/, which come from TargetSelectionDAG.td as follows,

include/llvm/Target/TargetSelectionDAG.td

def mulhs    : SDNode<"ISD::MULHS"     , SDTIntBinOp, [SDNPCommutative]>;
def mulhu    : SDNode<"ISD::MULHU"     , SDTIntBinOp, [SDNPCommutative]>;

Except the custom type, llvm IR operations of type expand and promote will call Cpu0DAGToDAGISel::Select() during instruction selection of DAG translation. The SelectMULT() which called by Select() return the HI part of multiplication result to HI register for IR operations of mulhs or mulhu. After that, MFHI instruction moves the HI register to Cpu0 field “a” register, $ra. MFHI instruction is FL format and only use Cpu0 field “a” register, we set the $rb and imm16 to 0. Fig. 19 and ch4_1_mult.cpu0.s are the results of compile ch4_1_mult.bc.

_images/41.png

Fig. 19 DAG for ch4_1_mult.bc with Mips style MULT

118-165-66-82:input Jonathan$ cat ch4_1_mult.cpu0.s
  ...
# BB#0:
  addiu $sp, $sp, -8
  addiu $2, $zero, 11
  st  $2, 4($sp)
  lui $2, 10922
  ori $3, $2, 43691
  addiu $2, $zero, 12
  mult  $2, $3
  mfhi  $3
  shr $4, $3, 31
  sra $3, $3, 1
  addu  $3, $3, $4
  mul $3, $3, $2
  subu  $2, $2, $3
  st  $2, 4($sp)
  addiu $sp, $sp, 8
  ret $lr

Full support %, and /

The sensitive readers may find llvm using “multiplication” instead of “div” to get the “%” result just because our example uses constant as divider, “(b+1)%12” in our example. If programmer uses variable as the divider like “(b+1)%a”, then: what will happen next? The answer is our code will has error in handling this.

Cpu0 just like Mips uses LO and HI registers to hold the “quotient” and “remainder”. And uses instructions “mflo” and “mfhi” to get the result from LO or HI registers furthermore. With this solution, the “c = a / b” can be finished by “div a, b” and “mflo c”; the “c = a % b” can be finished by “div a, b” and “mfhi c”.

To supports operators “%” and “/”, the following code added in Chapter4_1.

  1. SDIV, UDIV and it’s reference class, nodes in Cpu0InstrInfo.td.
  2. The copyPhysReg() declared and defined in Cpu0InstrInfo.h and Cpu0InstrInfo.cpp.
  3. The setOperationAction(ISD::SDIV, MVT::i32, Expand), ..., setTargetDAGCombine(ISD::SDIVREM) in constructore of Cpu0ISelLowering.cpp; PerformDivRemCombine() and PerformDAGCombine() in Cpu0ISelLowering.cpp.

The IR instruction sdiv stands for signed div while udiv stands for unsigned div.

lbdex/input/ch4_1_mult2.cpp

int test_mult()
{
  int b = 11;
  int a = 12;

  b = (b+1)%a;

  return b;
}

If we run with ch4_1_mult2.cpp, the “div” cannot be gotten for operator “%”. It still uses “multiplication” instead of “div” in ch4_1_mult2.cpp because llvm do “Constant Propagation Optimization” in this. The ch4_1_mod.cpp can get the “div” for “%” result since it makes llvm “Constant Propagation Optimization” useless in it.

lbdex/input/ch4_1_mod.cpp

int test_mod()
{
  int b = 11;
  volatile int a = 12;

  b = (b+1)%a;

  return b;
}
118-165-77-79:input Jonathan$ clang -target mips-unknown-linux-gnu -c
ch4_1_mod.cpp -emit-llvm -o ch4_1_mod.bc
118-165-77-79:input Jonathan$ /Users/Jonathan/llvm/test/cmake_
debug_build/Debug/bin/llc -march=cpu0 -relocation-model=pic -filetype=asm
ch4_1_mod.bc -o -
...
div $zero, $3, $2
mflo  $2
...

To explains how to work with “div”, let’s run ch4_1_mod.cpp with debug option as follows,

118-165-83-58:input Jonathan$ clang -target mips-unknown-linux-gnu -c
ch4_1_mod.cpp -I/Applications/Xcode.app/Contents/Developer/Platforms/
MacOSX.platform/Developer/SDKs/MacOSX10.8.sdk/usr/include/ -emit-llvm -o
ch4_1_mod.bc
118-165-83-58:input Jonathan$ /Users/Jonathan/llvm/test/cmake_debug_build/
Debug/bin/llc -march=cpu0 -relocation-model=pic -filetype=asm -debug
ch4_1_mod.bc -o -
...
=== _Z8test_modi
Initial selection DAG: BB#0 '_Z8test_mod2i:'
SelectionDAG has 21 nodes:
  ...
    0x2447448: <multiple use>
        0x24470d0: <multiple use>
        0x24471f8: i32 = Constant<1>

      0x2447320: i32 = add 0x24470d0, 0x24471f8 [ORD=7]

      0x2447448: <multiple use>
    0x2447570: i32 = srem 0x2447320, 0x2447448 [ORD=9]

    0x24468b8: <multiple use>
    0x2446b08: <multiple use>
  0x2448fc0: ch = store 0x2447448:1, 0x2447570, 0x24468b8, ...

  0x2449210: i32 = Register %V0

    0x2448fc0: <multiple use>
    0x2449210: <multiple use>
      0x2448fc0: <multiple use>
      0x24468b8: <multiple use>
      0x2446b08: <multiple use>
    0x24490e8: i32,ch = load 0x2448fc0, 0x24468b8, 0x2446b08<LD4[%b]> [ORD=11]

  0x2449338: ch,glue = CopyToReg 0x2448fc0, 0x2449210, 0x24490e8 [ORD=12]

    0x2449338: <multiple use>
    0x2449210: <multiple use>
    0x2449338: <multiple use>
  0x2449460: ch = Cpu0ISD::Ret 0x2449338, 0x2449210, 0x2449338:1 [ORD=12]

Replacing.1 0x24490e8: i32,ch = load 0x2448fc0, 0x24468b8, ...

With: 0x2447570: i32 = srem 0x2447320, 0x2447448 [ORD=9]
 and 1 other values
...

Optimized lowered selection DAG: BB#0 '_Z8test_mod2i:'
...
  0x2447570: i32 = srem 0x2447320, 0x2447448 [ORD=9]
...

Type-legalized selection DAG: BB#0 '_Z8test_mod2i:'
SelectionDAG has 16 nodes:
  ...
  0x7fed6882d610: i32,ch = load 0x7fed6882d210, 0x7fed6882cd10,
  0x7fed6882cb10<LD4[%1]> [ORD=5] [ID=-3]

    0x7fed6882d810: i32 = Constant<12> [ID=-3]

    0x7fed6882d610: <multiple use>
  0x7fed6882d710: i32 = srem 0x7fed6882d810, 0x7fed6882d610 [ORD=6] [ID=-3]
  ...

Legalized selection DAG: BB#0 '_Z8test_mod2i:'
  ...
    ... i32 = srem 0x2447320, 0x2447448 [ORD=9] [ID=-3]
  ...
 ... replacing: ...: i32 = srem 0x2447320, 0x2447448 [ORD=9] [ID=13]
     with:      ...: i32,i32 = sdivrem 0x2447320, 0x2447448 [ORD=9]

Optimized legalized selection DAG: BB#0 '_Z8test_mod2i:'
SelectionDAG has 18 nodes:
  ...
    0x2449588: i32 = Register %HI

        0x24470d0: <multiple use>
        0x24471f8: i32 = Constant<1> [ID=6]

      0x2447320: i32 = add 0x24470d0, 0x24471f8 [ORD=7] [ID=12]

      0x2447448: <multiple use>
    0x24490e8: glue = Cpu0ISD::DivRem 0x2447320, 0x2447448 [ORD=9]

  0x24496b0: i32,ch,glue = CopyFromReg 0x240d480, 0x2449588, 0x24490e8 [ORD=9]

    0x2449338: <multiple use>
    0x2449210: <multiple use>
    0x2449338: <multiple use>
  0x2449460: ch = Cpu0ISD::Ret 0x2449338, 0x2449210, ...
  ...

===== Instruction selection begins: BB#0 ''
...
Selecting: 0x24490e8: glue = Cpu0ISD::DivRem 0x2447320, 0x2447448 [ORD=9] [ID=14]

ISEL: Starting pattern match on root node: 0x24490e8: glue = Cpu0ISD::DivRem
0x2447320, 0x2447448 [ORD=9] [ID=14]

  Initial Opcode index to 4044
  Morphed node: 0x24490e8: i32,glue = SDIV 0x2447320, 0x2447448 [ORD=9]

ISEL: Match complete!
=> 0x24490e8: i32,glue = SDIV 0x2447320, 0x2447448 [ORD=9]
...

Summary above DAGs translation messages into 4 steps:

  1. Reduce DAG nodes in stage “Optimized lowered selection DAG” (Replacing ... displayed before “Optimized lowered selection DAG:”). Since SSA form has some redundant nodes for store and load, they can be removed.
  2. Change DAG srem to sdivrem in stage “Legalized selection DAG”.
  3. Change DAG sdivrem to Cpu0ISD::DivRem and in stage “Optimized legalized selection DAG”.
  4. Add DAG “i32 = Register %HI” and “CopyFromReg ...” in stage “Optimized legalized selection DAG”.

Summary as Table: Stages for C operator % and Table: Functions handle the DAG translation and pattern match for C operator %.

Table 17 Stages for C operator %
Stage IR/DAG/instruction
.bc srem
Legalized selection DAG sdivrem
Optimized legalized selection DAG Cpu0ISD::DivRem, CopyFromReg xx, Hi, Cpu0ISD::DivRem
pattern match div, mfhi
Table 18 Functions handle the DAG translation and pattern match for C operator %
Translation Do by
srem => sdivrem setOperationAction(ISD::SREM, MVT::i32, Expand);
sdivrem => Cpu0ISD::DivRem setTargetDAGCombine(ISD::SDIVREM);
sdivrem => CopyFromReg xx, Hi, xx PerformDivRemCombine();
Cpu0ISD::DivRem => div SDIV (Cpu0InstrInfo.td)
CopyFromReg xx, Hi, xx => mfhi MFLO (Cpu0InstrInfo.td)

Step 2 as above, is triggered by code “setOperationAction(ISD::SREM, MVT::i32, Expand);” in Cpu0ISelLowering.cpp. About Expand please ref. [7] and [8]. Step 3 is triggered by code “setTargetDAGCombine(ISD::SDIVREM);” in Cpu0ISelLowering.cpp. Step 4 is did by PerformDivRemCombine() which called by performDAGCombine(). Since the % corresponding srem makes the “N->hasAnyUseOfValue(1)” to true in PerformDivRemCombine(), it creates DAG of “CopyFromReg”. When using “/” in C, it will make “N->hasAnyUseOfValue(0)” to ture. For sdivrem, sdiv makes “N->hasAnyUseOfValue(0)” true while srem makes “N->hasAnyUseOfValue(1)” ture.

Above steps will change the DAGs when llc is running. After that, the pattern match defined in Chapter4_1/Cpu0InstrInfo.td will translate Cpu0ISD::DivRem into div; and “CopyFromReg xxDAG, Register %H, Cpu0ISD::DivRem” to mfhi.

The ch4_1_div.cpp is for / div operator test.

Rotate instructions

Chapter4_1 include the rotate operations translation. The instructions “rol”, “ror”, “rolv” and “rorv” defined in Cpu0InstrInfo.td handle the translation. Compile ch4_1_rotate.cpp will get Cpu0 “rol” instruction.

lbdex/input/ch4_1_rotate.cpp


//#define TEST_ROXV

int test_rotate_left()
{
  unsigned int a = 8;
  int result = ((a << 30) | (a >> 2));

  return result;
}

#ifdef TEST_ROXV

int test_rotate_left1()
{
  volatile unsigned int a = 4;
  volatile int n = 30;
  int result = ((a << n) | (a >> (32 - n)));

  return result;
}

int test_rotate_right()
{
  volatile unsigned int a = 1;
  volatile int n = 30;
  int result = ((a >> n) | (a << (32 - n)));

  return result;
}

#endif
114-43-200-122:input Jonathan$ clang -target mips-unknown-linux-gnu -c
ch4_1_rotate.cpp -emit-llvm -o ch4_1_rotate.bc
114-43-200-122:input Jonathan$ llvm-dis ch4_1_rotate.bc -o -
define i32 @_Z16test_rotate_leftv() #0 {
  %a = alloca i32, align 4
  %result = alloca i32, align 4
  store i32 8, i32* %a, align 4
  %1 = load i32* %a, align 4
  %2 = shl i32 %1, 30
  %3 = load i32* %a, align 4
  %4 = ashr i32 %3, 2
  %5 = or i32 %2, %4
  store i32 %5, i32* %result, align 4
  %6 = load i32* %result, align 4
  ret i32 %6
}
114-43-200-122:input Jonathan$ /Users/Jonathan/llvm/test/cmake_debug_build/Debug/
bin/llc -march=cpu0 -relocation-model=pic -filetype=asm ch4_1_rotate.bc -o -
  ...
  rol $2, $2, 30
  ...

Instructions “rolv” and “rorv” cannot be tested at this moment, they need logic “or” implementation which supported at next section. Like the previous subsection mentioned at this chapter, some IRs in function @_Z16test_rotate_leftv() will be combined into one one IR rotl during DAGs translation.

Logic

Chapter4_2 supports logic operators &, |, ^, !, ==, !=, <, <=, > and >=. They are trivial and easy. Listing the added code with comments and table for these operators IR, DAG and instructions as below. Please check them with the run result of bc and asm instructions for ch4_2_logic.cpp as below.

lbdex/chapters/Chapter4_2/Cpu0InstrInfo.td

let Predicates = [Ch4_2] in {
class CmpInstr<bits<8> op, string instr_asm,
               InstrItinClass itin, RegisterClass RC, RegisterClass RD,
               bit isComm = 0>:
  FA<op, (outs RD:$ra), (ins RC:$rb, RC:$rc),
     !strconcat(instr_asm, "\t$ra, $rb, $rc"), [], itin> {
  let shamt = 0;
  let isCommutable = isComm;
  let Predicates = [HasCmp];
}
}
// SetCC
let Predicates = [Ch4_2] in {
class SetCC_R<bits<8> op, string instr_asm, PatFrag cond_op,
              RegisterClass RC>:
  FA<op, (outs GPROut:$ra), (ins RC:$rb, RC:$rc),
     !strconcat(instr_asm, "\t$ra, $rb, $rc"),
     [(set GPROut:$ra, (cond_op RC:$rb, RC:$rc))],
     IIAlu>, Requires<[HasSlt]> {
  let shamt = 0;
}

class SetCC_I<bits<8> op, string instr_asm, PatFrag cond_op, Operand Od,
              PatLeaf imm_type, RegisterClass RC>:
  FL<op, (outs GPROut:$ra), (ins RC:$rb, Od:$imm16),
     !strconcat(instr_asm, "\t$ra, $rb, $imm16"),
     [(set GPROut:$ra, (cond_op RC:$rb, imm_type:$imm16))],
     IIAlu>, Requires<[HasSlt]> {
}
}
let Predicates = [Ch4_2] in {
def ANDi    : ArithLogicI<0x0c, "andi", and, uimm16, immZExt16, CPURegs>;
}
let Predicates = [Ch4_2] in {
def XORi    : ArithLogicI<0x0e, "xori", xor, uimm16, immZExt16, CPURegs>;
}
let Predicates = [Ch4_2] in {
let Predicates = [HasCmp] in {
def CMP     : CmpInstr<0x10, "cmp", IIAlu, CPURegs, SR, 0>;
}
}
let Predicates = [Ch4_2] in {
def AND     : ArithLogicR<0x18, "and", and, IIAlu, CPURegs, 1>;
def OR      : ArithLogicR<0x19, "or", or, IIAlu, CPURegs, 1>;
def XOR     : ArithLogicR<0x1a, "xor", xor, IIAlu, CPURegs, 1>;
}
let Predicates = [Ch4_2] in {
let Predicates = [HasSlt] in {
def SLTi    : SetCC_I<0x26, "slti", setlt, simm16, immSExt16, CPURegs>;
def SLTiu   : SetCC_I<0x27, "sltiu", setult, simm16, immSExt16, CPURegs>;
def SLT     : SetCC_R<0x28, "slt", setlt, CPURegs>;
def SLTu    : SetCC_R<0x29, "sltu", setult, CPURegs>;
}
}
let Predicates = [Ch4_2] in {
def : Pat<(not CPURegs:$in),
// 1: in == 0; 0: in != 0
          (XORi CPURegs:$in, 1)>;
}
// setcc patterns

let Predicates = [Ch4_2] in {
// setcc for cmp instruction
multiclass SeteqPatsCmp<RegisterClass RC> {
// a == b
  def : Pat<(seteq RC:$lhs, RC:$rhs),
            (SHR (ANDi (CMP RC:$lhs, RC:$rhs), 2), 1)>;
// a != b
  def : Pat<(setne RC:$lhs, RC:$rhs),
            (XORi (SHR (ANDi (CMP RC:$lhs, RC:$rhs), 2), 1), 1)>;
}

// a < b
multiclass SetltPatsCmp<RegisterClass RC> {
  def : Pat<(setlt RC:$lhs, RC:$rhs),
            (ANDi (CMP RC:$lhs, RC:$rhs), 1)>;
// if cpu0  `define N    `SW[31]  instead of `SW[0] // Negative flag, then need
// 2 more instructions as follows,
//          (XORi (ANDi (SHR (CMP RC:$lhs, RC:$rhs), (LUi 0x8000), 31), 1), 1)>;
  def : Pat<(setult RC:$lhs, RC:$rhs),
            (ANDi (CMP RC:$lhs, RC:$rhs), 1)>;
}

// a <= b
multiclass SetlePatsCmp<RegisterClass RC> {
  def : Pat<(setle RC:$lhs, RC:$rhs),
// a <= b is equal to (XORi (b < a), 1)
            (XORi (ANDi (CMP RC:$rhs, RC:$lhs), 1), 1)>;
  def : Pat<(setule RC:$lhs, RC:$rhs),
            (XORi (ANDi (CMP RC:$rhs, RC:$lhs), 1), 1)>;
}

// a > b
multiclass SetgtPatsCmp<RegisterClass RC> {
  def : Pat<(setgt RC:$lhs, RC:$rhs),
// a > b is equal to b < a is equal to setlt(b, a)
            (ANDi (CMP RC:$rhs, RC:$lhs), 1)>;
  def : Pat<(setugt RC:$lhs, RC:$rhs),
            (ANDi (CMP RC:$rhs, RC:$lhs), 1)>;
}

// a >= b
multiclass SetgePatsCmp<RegisterClass RC> {
  def : Pat<(setge RC:$lhs, RC:$rhs),
// a >= b is equal to b <= a
            (XORi (ANDi (CMP RC:$lhs, RC:$rhs), 1), 1)>;
  def : Pat<(setuge RC:$lhs, RC:$rhs),
            (XORi (ANDi (CMP RC:$lhs, RC:$rhs), 1), 1)>;
}

// setcc for slt instruction
multiclass SeteqPatsSlt<RegisterClass RC, Instruction SLTiuOp, Instruction XOROp,
                     Instruction SLTuOp, Register ZEROReg> {
// a == b
  def : Pat<(seteq RC:$lhs, RC:$rhs),
                (SLTiuOp (XOROp RC:$lhs, RC:$rhs), 1)>;
// a != b
  def : Pat<(setne RC:$lhs, RC:$rhs),
                (SLTuOp ZEROReg, (XOROp RC:$lhs, RC:$rhs))>;
}

// a <= b
multiclass SetlePatsSlt<RegisterClass RC, Instruction SLTOp, Instruction SLTuOp> {
  def : Pat<(setle RC:$lhs, RC:$rhs),
// a <= b is equal to (XORi (b < a), 1)
                (XORi (SLTOp RC:$rhs, RC:$lhs), 1)>;
  def : Pat<(setule RC:$lhs, RC:$rhs),
                (XORi (SLTuOp RC:$rhs, RC:$lhs), 1)>;
}

// a > b
multiclass SetgtPatsSlt<RegisterClass RC, Instruction SLTOp, Instruction SLTuOp> {
  def : Pat<(setgt RC:$lhs, RC:$rhs),
// a > b is equal to b < a is equal to setlt(b, a)
                (SLTOp RC:$rhs, RC:$lhs)>;
  def : Pat<(setugt RC:$lhs, RC:$rhs),
                (SLTuOp RC:$rhs, RC:$lhs)>;
}

// a >= b
multiclass SetgePatsSlt<RegisterClass RC, Instruction SLTOp, Instruction SLTuOp> {
  def : Pat<(setge RC:$lhs, RC:$rhs),
// a >= b is equal to b <= a
                (XORi (SLTOp RC:$lhs, RC:$rhs), 1)>;
  def : Pat<(setuge RC:$lhs, RC:$rhs),
                (XORi (SLTuOp RC:$lhs, RC:$rhs), 1)>;
}

multiclass SetgeImmPatsSlt<RegisterClass RC, Instruction SLTiOp,
                        Instruction SLTiuOp> {
  def : Pat<(setge RC:$lhs, immSExt16:$rhs),
                (XORi (SLTiOp RC:$lhs, immSExt16:$rhs), 1)>;
  def : Pat<(setuge RC:$lhs, immSExt16:$rhs),
                (XORi (SLTiuOp RC:$lhs, immSExt16:$rhs), 1)>;
}

let Predicates = [HasSlt] in {
defm : SeteqPatsSlt<CPURegs, SLTiu, XOR, SLTu, ZERO>;
defm : SetlePatsSlt<CPURegs, SLT, SLTu>;
defm : SetgtPatsSlt<CPURegs, SLT, SLTu>;
defm : SetgePatsSlt<CPURegs, SLT, SLTu>;
defm : SetgeImmPatsSlt<CPURegs, SLTi, SLTiu>;
}

let Predicates = [HasCmp] in {
defm : SeteqPatsCmp<CPURegs>;
defm : SetltPatsCmp<CPURegs>;
defm : SetlePatsCmp<CPURegs>;
defm : SetgtPatsCmp<CPURegs>;
defm : SetgePatsCmp<CPURegs>;
}
} // let Predicates = [Ch4_2]

lbdex/chapters/Chapter4_2/Cpu0ISelLowering.cpp

Cpu0TargetLowering::Cpu0TargetLowering(const Cpu0TargetMachine &TM,
                                       const Cpu0Subtarget &STI)
    : TargetLowering(TM), Subtarget(STI), ABI(TM.getABI()) {

  // Cpu0 doesn't have sext_inreg, replace them with shl/sra.
  setOperationAction(ISD::SIGN_EXTEND_INREG, MVT::i1 , Expand);
  setOperationAction(ISD::SIGN_EXTEND_INREG, MVT::i8 , Expand);
  setOperationAction(ISD::SIGN_EXTEND_INREG, MVT::i16 , Expand);
  setOperationAction(ISD::SIGN_EXTEND_INREG, MVT::i32 , Expand);
  setOperationAction(ISD::SIGN_EXTEND_INREG, MVT::Other , Expand);
  ...
}

lbdex/input/ch4_2_logic.cpp

int test_andorxornot()
{
  int a = 5;
  int b = 3;
  int c = 0, d = 0, e = 0;

  c = (a & b);  // c = 1
  d = (a | b);  // d = 7
  e = (a ^ b);  // e = 6
  b = !a;       // b = 0

  return (c+d+e+b); // 14
}

int test_setxx()
{
  int a = 5;
  int b = 3;
  int c, d, e, f, g, h;

  c = (a == b); // seq, c = 0
  d = (a != b); // sne, d = 1
  e = (a < b);  // slt, e = 0
  f = (a <= b); // sle, f = 0
  g = (a > b);  // sgt, g = 1
  h = (a >= b); // sge, g = 1

  return (c+d+e+f+g+h); // 3
}

114-43-204-152:input Jonathan$ clang -target mips-unknown-linux-gnu -c
ch4_2_logic.cpp -emit-llvm -o ch4_2_logic.bc
114-43-204-152:input Jonathan$ llvm-dis ch4_2_logic.bc -o -
...
; Function Attrs: nounwind uwtable
define i32 @_Z16test_andorxornotv() #0 {
entry:
  ...
  %and = and i32 %0, %1
  ...
  %or = or i32 %2, %3
  ...
  %xor = xor i32 %4, %5
  ...
  %tobool = icmp ne i32 %6, 0
  %lnot = xor i1 %tobool, true
  %conv = zext i1 %lnot to i32
  ...
}

; Function Attrs: nounwind uwtable
define i32 @_Z10test_setxxv() #0 {
entry:
  ...
  %cmp = icmp eq i32 %0, %1
  %conv = zext i1 %cmp to i32
  store i32 %conv, i32* %c, align 4
  ...
  %cmp1 = icmp ne i32 %2, %3
  %conv2 = zext i1 %cmp1 to i32
  store i32 %conv2, i32* %d, align 4
  ...
  %cmp3 = icmp slt i32 %4, %5
  %conv4 = zext i1 %cmp3 to i32
  store i32 %conv4, i32* %e, align 4
  ...
  %cmp5 = icmp sle i32 %6, %7
  %conv6 = zext i1 %cmp5 to i32
  store i32 %conv6, i32* %f, align 4
  ...
  %cmp7 = icmp sgt i32 %8, %9
  %conv8 = zext i1 %cmp7 to i32
  store i32 %conv8, i32* %g, align 4
  ...
  %cmp9 = icmp sge i32 %10, %11
  %conv10 = zext i1 %cmp9 to i32
  store i32 %conv10, i32* %h, align 4
  ...
}

114-43-204-152:input Jonathan$ /Users/Jonathan/llvm/test/cmake_debug_build/
Debug/bin/llc -march=cpu0 -mcpu=cpu032I -relocation-model=pic -filetype=asm
ch4_2_logic.bc -o -

  .globl  _Z16test_andorxornotv
  ...
  and $3, $4, $3
  ...
  or  $3, $4, $3
  ...
  xor $3, $4, $3
  ...
  cmp $sw, $3, $2
  andi  $2, $sw, 2
  shr $2, $2, 1
  ...

  .globl  _Z10test_setxxv
  ...
  cmp $sw, $3, $2
  andi  $2, $sw, 2
  shr $2, $2, 1
  ...
  cmp $sw, $3, $2
  andi  $2, $sw, 2
  shr $2, $2, 1
  xori  $2, $2, 1
  ...
  cmp $sw, $3, $2
  andi  $2, $sw, 1
  ...
  cmp $sw, $3, $2
  andi  $2, $sw, 1
  xori  $2, $2, 1
  ...
  cmp $sw, $3, $2
  andi  $2, $sw, 1
  ...
  cmp $sw, $3, $2
  andi  $2, $sw, 1
  xori  $2, $2, 1
  ...

114-43-204-152:input Jonathan$ /Users/Jonathan/llvm/test/cmake_debug_build/
Debug/bin/llc -march=cpu0 -mcpu=cpu032II -relocation-model=pic -filetype=asm
ch4_2_logic.bc -o -
  ...
      sltiu   $2, $2, 1
      andi    $2, $2, 1
      ...
Table 19 Logic operators for cpu032I
C .bc Optimized legalized selection DAG cpu032I
&, && and and and
|, || or or or
^ xor xor xor
!
  • %tobool = icmp ne i32 %6, 0
  • %lnot = xor i1 %tobool, true
  • %conv = zext i1 %lnot to i32
  • %lnot = (setcc %tobool, 0, seteq)
  • %conv = (and %lnot, 1)
  • xor $3, $4, $3
==
  • %cmp = icmp eq i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • %cmp = (setcc %0, %1, seteq)
  • and %cmp, 1
  • cmp $sw, $3, $2
  • andi $2, $sw, 2
  • shr $2, $2, 1
  • andi $2, $2, 1
!=
  • %cmp = icmp ne i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • %cmp = (setcc %0, %1, setne)
  • and %cmp, 1
  • cmp $sw, $3, $2
  • andi $2, $sw, 2
  • shr $2, $2, 1
  • andi $2, $2, 1
<
  • %cmp = icmp lt i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • (setcc %0, %1, setlt)
  • and %cmp, 1
  • cmp $sw, $3, $2
  • andi $2, $sw, 2
  • andi $2, $2, 1
  • andi $2, $2, 1
<=
  • %cmp = icmp le i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • (setcc %0, %1, setle)
  • and %cmp, 1
  • cmp $sw, $2, $3
  • andi $2, $sw, 1
  • xori $2, $2, 1
  • andi $2, $2, 1
>
  • %cmp = icmp gt i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • (setcc %0, %1, setgt)
  • and %cmp, 1
  • cmp $sw, $2, $3
  • andi $2, $sw, 2
  • andi $2, $2, 1
>=
  • %cmp = icmp le i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • (setcc %0, %1, setle)
  • and %cmp, 1
  • cmp $sw, $3, $2
  • andi $2, $sw, 1
  • xori $2, $2, 1
  • andi $2, $2, 1
Table 20 Logic operators for cpu032II
C .bc Optimized legalized selection DAG cpu032II
&, && and and and
|, || or or or
^ xor xor xor
!
  • %tobool = icmp ne i32 %6, 0
  • %lnot = xor i1 %tobool, true
  • %conv = zext i1 %lnot to i32
  • %lnot = (setcc %tobool, 0, seteq)
  • %conv = (and %lnot, 1)
  • xor $3, $4, $3
==
  • %cmp = icmp eq i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • %cmp = (setcc %0, %1, seteq)
  • and %cmp, 1
  • xor $2, $3, $2
  • sltiu $2, $2, 1
  • andi $2, $2, 1
!=
  • %cmp = icmp ne i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • %cmp = (setcc %0, %1, setne)
  • and %cmp, 1
  • xor $2, $3, $2
  • sltu $2, $zero, 2
  • shr $2, $2, 1
  • andi $2, $2, 1
<
  • %cmp = icmp lt i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • (setcc %0, %1, setlt)
  • and %cmp, 1
  • slt $2, $3, $2
  • andi $2, $2, 1
<=
  • %cmp = icmp le i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • (setcc %0, %1, setle)
  • and %cmp, 1
  • slt $2, $3, $2
  • xori $2, $2, 1
  • andi $2, $2, 1
>
  • %cmp = icmp gt i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • (setcc %0, %1, setgt)
  • and %cmp, 1
  • slt $2, $3, $2
  • andi $2, $2, 1
>=
  • %cmp = icmp le i32 %0, %1
  • %conv = zext i1 %cmp to i32
  • (setcc %0, %1, setle)
  • and %cmp, 1
  • slt $2, $3, $2
  • xori $2, $2, 1
  • andi $2, $2, 1

In relation operators ==, !=, ..., %0 = $3 = 5, %1 = $2 = 3 for ch4_2_logic.cpp.

The “Optimized legalized selection DAG” is the last DAG stage just before the “instruction selection” as the previous section mentioned in this chapter. You can see the whole DAG stages by llc -debug option.

From above result, slt spend less instructions than cmp for relation operators translation. Beyond that, slt uses general purpose register while cmp uses $sw dedicated register.

lbdex/input/ch4_2_slt_explain.cpp

int test_OptSlt()
{
  int a = 3, b = 1;
  int d = 0, e = 0, f = 0;

  d = (a < 1);
  e = (b < 2);
  f = d + e;

  return (f);
}
118-165-78-10:input Jonathan$ clang -target mips-unknown-linux-gnu -O2
-c ch4_2_slt_explain.cpp -emit-llvm -o ch4_2_slt_explain.bc
118-165-78-10:input Jonathan$ /Users/Jonathan/llvm/test/cmake_debug_build/
Debug/bin/llc -march=cpu0 -mcpu=cpu032I -relocation-model=static -filetype=asm
ch4_2_slt_explain.bc -o -
  ...
  ld  $3, 20($sp)
  cmp $sw, $3, $2
  andi  $2, $sw, 1
  andi  $2, $2, 1
  st  $2, 12($sp)
  addiu $2, $zero, 2
  ld  $3, 16($sp)
  cmp $sw, $3, $2
  andi  $2, $sw, 1
  andi  $2, $2, 1
  ...
118-165-78-10:input Jonathan$ /Users/Jonathan/llvm/test/cmake_debug_build/
Debug/bin/llc -march=cpu0 -mcpu=cpu032II -relocation-model=static -filetype=asm
ch4_2_slt_explain.bc -o -
  ...
  ld  $2, 20($sp)
  slti  $2, $2, 1
  andi  $2, $2, 1
  st  $2, 12($sp)
  ld  $2, 16($sp)
  slti  $2, $2, 2
  andi  $2, $2, 1
  st  $2, 8($sp)
  ...

Run these two llc -mcpu option for Chapter4_2 with ch4_2_slt_explain.cpp to get the above result. Regardless of the move between $sw and general purpose register in llc -mcpu=cpu032I, the two cmp instructions in it will has hazard in instruction reorder since both of them use $sw register. The llc -mcpu=cpu032II has not this problem because it uses slti [9]. The slti version can reorder as follows,

...
ld  $2, 16($sp)
slti  $2, $2, 2
andi  $2, $2, 1
st  $2, 8($sp)
ld  $2, 20($sp)
slti  $2, $2, 1
andi  $2, $2, 1
st  $2, 12($sp)
...

Chapter4_2 include instructions cmp and slt. Though cpu032II include both of these two instructions, the slt takes the priority since “let Predicates = [HasSlt]” appeared before “let Predicates = [HasCmp]” in Cpu0InstrInfo.td.

Summary

List C operators, IR of .bc, Optimized legalized selection DAG and Cpu0 instructions implemented in this chapter in Table: Chapter 4 mathmetic operators. There are over 20 operators totally in mathmetic and logic support in this chapter and spend 4xx lines of source code.

Table 21 Chapter 4 mathmetic operators
C .bc Optimized legalized selection DAG Cpu0
+ add add addu
- sub sub subu
* mul mul mul
/ sdiv Cpu0ISD::DivRem div
udiv Cpu0ISD::DivRemU divu
<< shl shl shl
>>
  • ashr
  • lshr
  • sra
  • srl
  • sra
  • shr
!
  • %tobool = icmp ne i32 %0, 0
  • %lnot = xor i1 %tobool, true
  • %lnot = (setcc %tobool, 0, seteq)
  • %conv = (and %lnot, 1)
  • %1 = (xor %tobool, 0)
  • %true = (addiu $r0, 1)
  • %lnot = (xor %1, %true)
  • %conv = zext i1 %lnot to i32
  • %conv = (and %lnot, 1)
  • %conv = (and %lnot, 1)
%
  • srem
  • sremu
  • Cpu0ISD::DivRem
  • Cpu0ISD::DivRemU
  • div
  • divu
(x<<n)|(x>>32-n) shl + lshr rotl, rotr rol, rolv, ror, rorv
[1]http://llvm.org/docs/doxygen/html/structllvm_1_1InstrStage.html
[2]http://msdn.microsoft.com/en-us/library/336xbhcz%28v=vs.80%29.aspx
[3]http://llvm.org/docs/LangRef.html#ashr-instruction
[4]http://llvm.org/docs/LangRef.html#lshr-instruction
[5]http://llvm.org/docs/CodeGenerator.html#selectiondag-instruction-selection-process
[6]http://llvm.org/docs/LangRef.html#srem-instruction
[7]http://llvm.org/docs/WritingAnLLVMBackend.html#expand
[8]http://llvm.org/docs/CodeGenerator.html#selectiondag-legalizetypes-phase
[9]See book Computer Architecture: A Quantitative Approach (The Morgan Kaufmann Series in Computer Architecture and Design)
