Optimization

This chapter introduce llvm optimization.

LLVM IR optimization

The llvm-link provide optimizaton in IR level which can apply in different programs developed by more than one language. Of course, it can apply in the same language which support seperate compile.

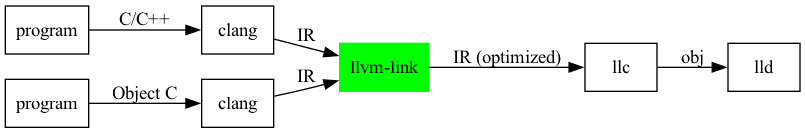

Fig. 5 llvm-link flow

Clang provide optimization options to do optimation from high level language to IR. But since many languages like C/C++ support separate compilation, it meaning there is no chance to do inter-procedure optimization if the functions come from different source files. To solve this problem, llvm provide llvm-link to link all *.bc into a single IR file, and through opt to finish the inter-procedure optimation [1]. Beyond the DAG local optimization mentioned in Chapter 2, there are global optimization based on inter-procedure analysis [2]. The following steps and examples show this optimization solution in llvm.

exlbt/input/optimizen/1.cpp

int callee(const int *a) {
  return *a+1;
}

exlbt/input/optimize/2.cpp

extern int callee(const int *X);

int caller() {
  int T;

  T = 4;

  return callee(&T);
}

JonathantekiiMac:input Jonathan$ clang -O3 -target mips-unknown-linux-gnu
-c 1.cpp -emit-llvm -o 1.bc
JonathantekiiMac:input Jonathan$ clang -O3 -target mips-unknown-linux-gnu
-c 2.cpp -emit-llvm -o 2.bc
JonathantekiiMac:input Jonathan$ llvm-link -o=a.bc 1.bc 2.bc
JonathantekiiMac:input Jonathan$ opt -O3 -o=a1.bc a.bc
JonathantekiiMac:input Jonathan$ llvm-dis a.bc -o -
...
; Function Attrs: nounwind readonly
define i32 @_Z6calleePKi(i32* nocapture readonly %a) #0 {
  %1 = load i32* %a, align 4, !tbaa !1
  %2 = add nsw i32 %1, 1
  ret i32 %2
}

define i32 @_Z6callerv() #1 {
  %T = alloca i32, align 4
  store i32 4, i32* %T, align 4, !tbaa !1
  %1 = call i32 @_Z6calleePKi(i32* %T)
  ret i32 %1
}
...

JonathantekiiMac:input Jonathan$ llvm-dis a1.bc -o -
...
; Function Attrs: nounwind readonly
define i32 @_Z6calleePKi(i32* nocapture readonly %a) #0 {
  %1 = load i32* %a, align 4, !tbaa !1
  %2 = add nsw i32 %1, 1
  ret i32 %2
}

; Function Attrs: nounwind readnone
define i32 @_Z6callerv() #1 {
  ret i32 5
}
...

From the result as above, the opt output has lesser number of IR instructions. Of course, the backend code will be more effective as follows,

JonathantekiiMac:input Jonathan$ ~/llvm/test/build/
bin/llc -march=cpu0 -relocation-model=pic -filetype=asm a.bc -o -
        .section .mdebug.abi32
        .previous
        .file "a.bc"
        .text
        .globl        _Z6calleePKi
        .align        2
        .type _Z6calleePKi,@function
        .ent  _Z6calleePKi            # @_Z6calleePKi
_Z6calleePKi:
        .frame        $sp,0,$lr
        .mask         0x00000000,0
        .set  noreorder
        .set  nomacro
# BB#0:
        ld    $2, 0($sp)
        ld    $2, 0($2)
        addiu $2, $2, 1
        ret   $lr
        .set  macro
        .set  reorder
        .end  _Z6calleePKi
$tmp0:
        .size _Z6calleePKi, ($tmp0)-_Z6calleePKi

        .globl        _Z6callerv
        .align        2
        .type _Z6callerv,@function
        .ent  _Z6callerv              # @_Z6callerv
_Z6callerv:
        .cfi_startproc
        .frame        $sp,32,$lr
        .mask         0x00004000,-4
        .set  noreorder
        .cpload       $t9
        .set  nomacro
# BB#0:
        addiu $sp, $sp, -32
$tmp3:
        .cfi_def_cfa_offset 32
        st    $lr, 28($sp)            # 4-byte Folded Spill
$tmp4:
        .cfi_offset 14, -4
        .cprestore    8
        addiu $2, $zero, 4
        st    $2, 24($sp)
        addiu $2, $sp, 24
        st    $2, 0($sp)
        ld    $t9, %call16(_Z6calleePKi)($gp)
        jalr  $t9
        ld    $gp, 8($sp)
        ld    $lr, 28($sp)            # 4-byte Folded Reload
        addiu $sp, $sp, 32
        ret   $lr
        .set  macro
        .set  reorder
        .end  _Z6callerv
$tmp5:
        .size _Z6callerv, ($tmp5)-_Z6callerv
        .cfi_endproc

JonathantekiiMac:input Jonathan$ ~/llvm/test/build/
bin/llc -march=cpu0 -relocation-model=pic -filetype=asm a1.bc -o -
        .section .mdebug.abi32
        .previous
        .file "a1.bc"
        .text
        .globl        _Z6calleePKi
        .align        2
        .type _Z6calleePKi,@function
        .ent  _Z6calleePKi            # @_Z6calleePKi
_Z6calleePKi:
        .frame        $sp,0,$lr
        .mask         0x00000000,0
        .set  noreorder
        .set  nomacro
# BB#0:
        ld    $2, 0($sp)
        ld    $2, 0($2)
        addiu $2, $2, 1
        ret   $lr
        .set  macro
        .set  reorder
        .end  _Z6calleePKi
$tmp0:
        .size _Z6calleePKi, ($tmp0)-_Z6calleePKi

        .globl        _Z6callerv
        .align        2
        .type _Z6callerv,@function
        .ent  _Z6callerv              # @_Z6callerv
_Z6callerv:
        .frame        $sp,0,$lr
        .mask         0x00000000,0
        .set  noreorder
        .set  nomacro
# BB#0:
        addiu $2, $zero, 5
        ret   $lr
        .set  macro
        .set  reorder
        .end  _Z6callerv
$tmp1:
        .size _Z6callerv, ($tmp1)-_Z6callerv

Though llvm-link provide optimization in IR level to support seperate compile, it come with the cost in compile time. As you can imagine, any one statement change will change the output IR of llvm-link. And the obj binary code have to re-compile. Compare to the seperate compile for each *.c file, it only need to re-compile the corresponding *.o file only.

Project

LLVM-VPO

Friend Gang-Ryung Uh replace LLC compiler by llvm on Very Portable Optimizer (VPO) compiler toolchain. VPO performs optimizations on a single intermediate representation called Register Transfer Lists (RTLs). In other word, the system generate RTLs from llvm IR and it do further optimization on RTLs.

The LLVM-VPO is illustrated at his home page. Click “6. LLVM-VPO Compiler Development - 2012 Google Faculty Research Award” at this home page [3] will get the information.
